Fuel delivery at the petrol station
LTW 75 fuel delivery hose, MKX 80 female TW coupler
Production MannTek, Sweden
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
Adapter: VK 100 x MK 80-32°
The lever is bent to enable lever arrest (safe position when coupled)
DCC Dry Cryogenic Coupling for LNG
Coupling process
Functioning principle of MannTek DDC Dry Disconnect Couplings
closed - open
Safety Swivel Break
SSB 16 SS
ZVA 32 for aircraft refuelling
black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly
MK 80 SS, TW couplers stainless steel
Oasis FV103 180° Fill Valve for CNG
Oasis HC208 Quick Coupler, CNG loading
ELAFLEX Hamburg, stock
Elaflon PTFE 50
Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

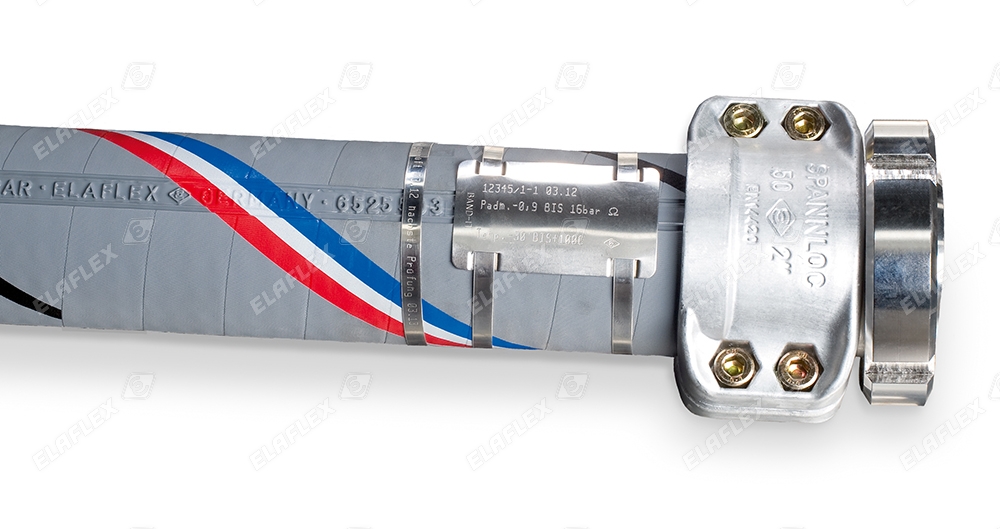

HD 50 reel hose for petroleum based products, VC 50-2" Spannloc clamped male coupling
HD-C LT, Low Temperature
Antarctica: Low Temperature aircraft refuelling hoses in action; fuel transfer from drums via mobile pump
Road tanker with open hose reel, HD hose assembly, ZV 500 nozzle
SPANNFIX pinned safety clamps of aluminium
SX 50 Al
V 16-1" cr
Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, red.
KR 50 - 21/2"
Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors
Locomotive refuelling
Dispenser, ZV 32 DB nozzles with Renk coupling
ERV-GR ... ZS
"Green Band" Rubber Expansion Joints with limiters in chemical pumping system
GasGuard LPG nozzle GG20DN
With long connector nut to access 'hard to reach' fill points. "DN": suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure : 1,7 cm³.
Transport protection for flanged fittings
ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid
LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed
ELAFLEX Hamburg
4.1.1
Check Valve 350 bar
for Hydrogen
Hot stamping process, production TW coupling parts
ZVA 25 for aircraft refuelling
red plastic cover (scuffguard), decal (sticker) AVGAS, dust cap and ground cable assembly
MK-A 80 SS, TW female coupler with Active Safeguard Lever
connected: hose assembly with VKX 75.80 SS
RS 2 x 3 SS
Reducer Female/Male
