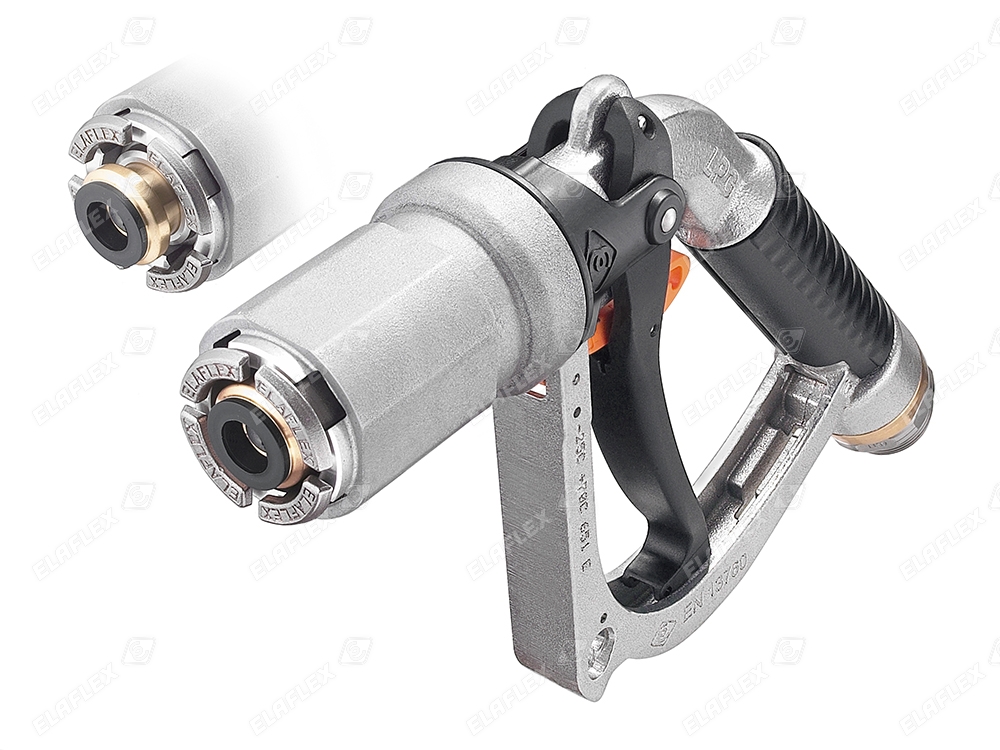

EA 866 scuffguard: fuel grade identification 'LPG' to standard

The scuffguard for LPG / Autogas nozzles shows the LPG fuel grade marking required by standard, and offers a large advertising space

LNG Refuelling

LNG truck refuelling with 'N-LNG' Nozzle coupled to fuel, LNG 25 fill hose assembly with cover, bonding cable

BD 63 Hose Beads

to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.

Requirements to a Hose

(German)

ELAFLEX Hamburg

Assembling VSRV bolted vacuum support ring

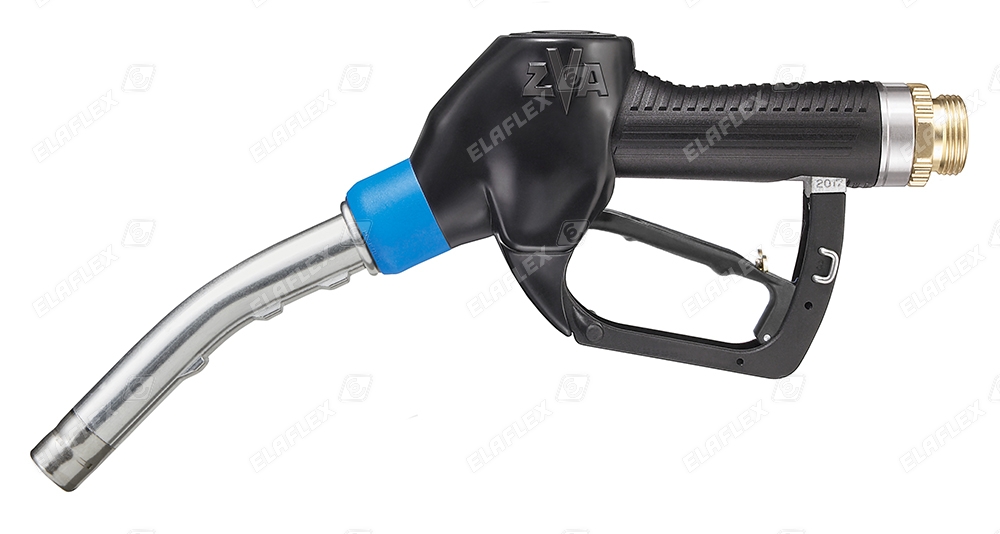

ZVA Slimline 2 DSA, Prepay Dispenser

DSA: Pressure Controlled Safety Shut-Off

Cabinet of road tanker:

MK 80-32 TW coupler with bent lever, VB 80 P dust plug

Elaflon PTFE

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Universal hose assembly UTS 50 with SFC 50 SS / SS

HD-C, airport depot

Underwing couplings with HD-C hoses for bottom loading of aircraft refuellers at airport depot

LNG ship bunkering

DCC 100 Dry Cryogenic Coupling, CBC 100 PERC Cryogenic Breakaway Coupling

Section view of a CSB 21 COAX Safety Break

L.P. Gas road tanker: long hose reel, LPG 32 and LPG 25 hose assemblies

Elaflex Pacific Pty., Australia: workshop

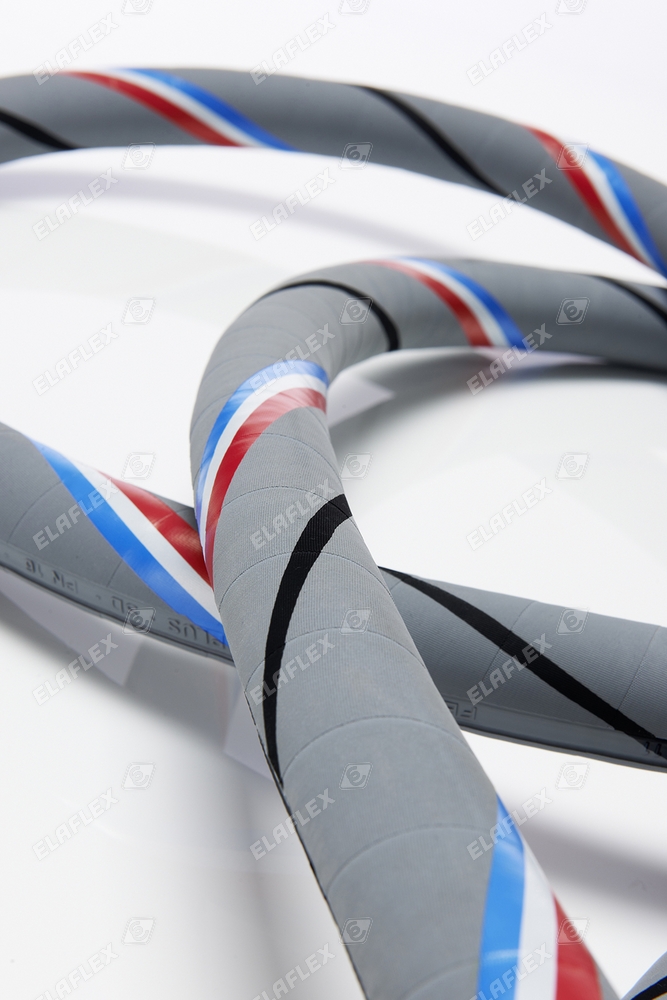

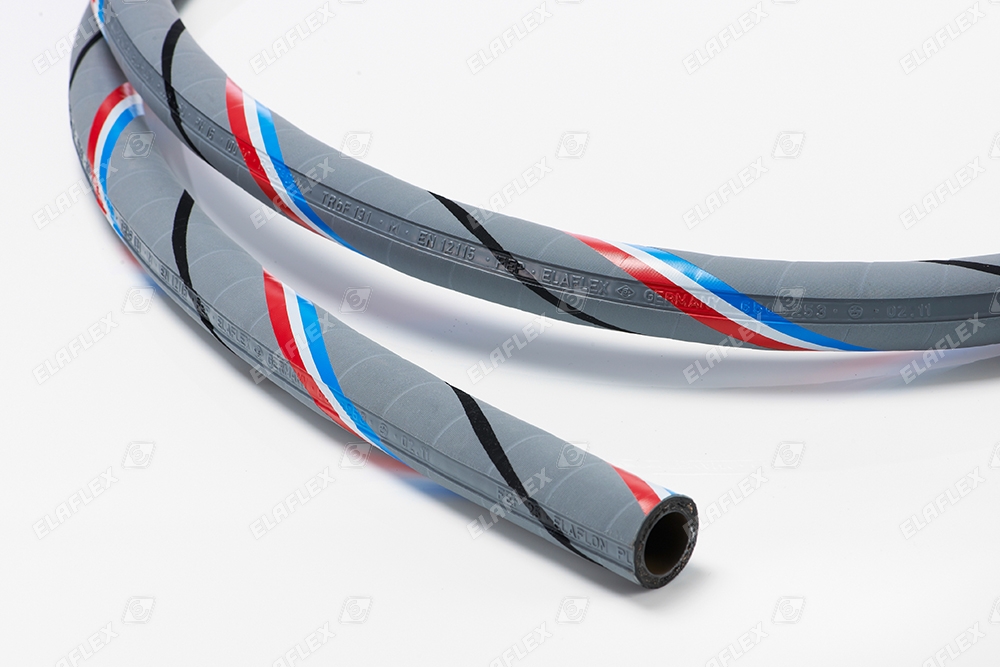

Yellow Band hoses from Elaflex

Setting the standard for refuelling hoses

Fluorflex FXD universal hose assemblies with anti kinking spiral KSS

extremely flexible PTFE hose with maximum bending radius and safety against kinking

DDC-S 2 1/2" PE

Dust plug for DDC-M 65 Dry Disconnect Coupling

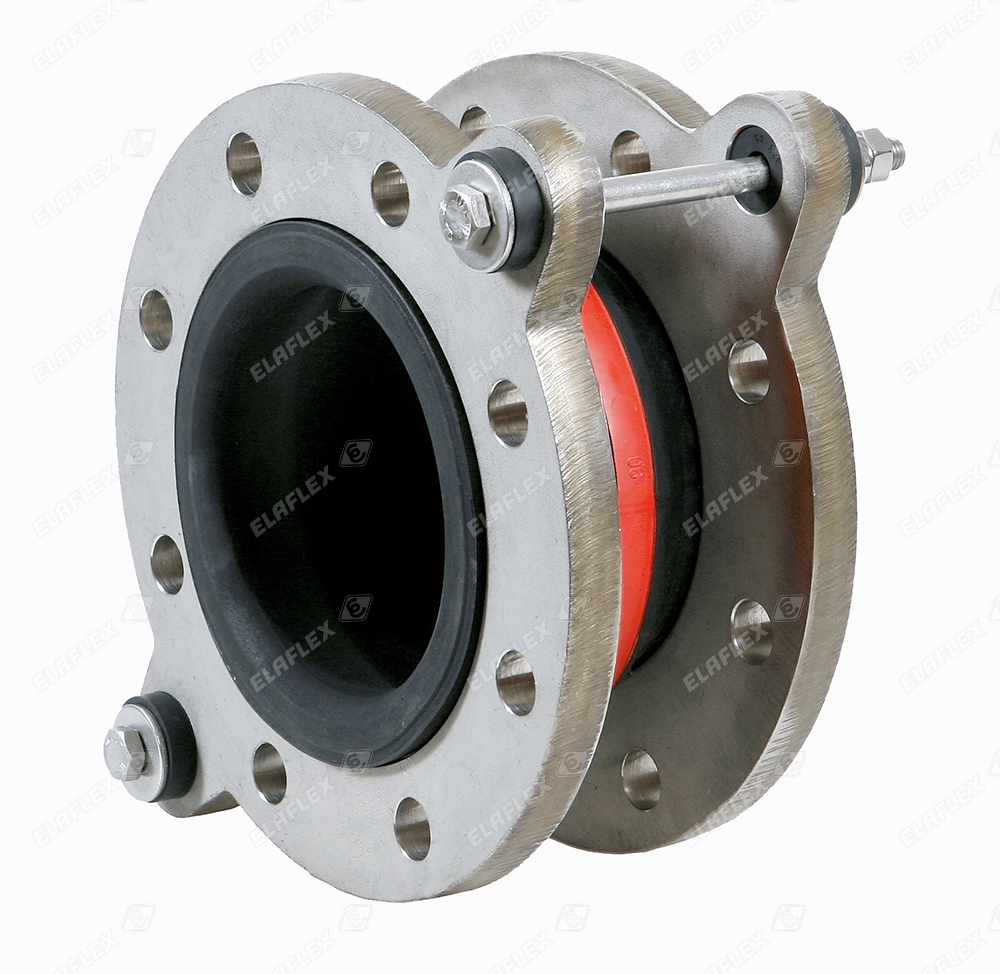

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

Lube oil plant: manifold with DDC-V Dry Disconnect Couplings

Rubber Expansion Joint ERV-GS 80.16

YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.

ERV-G 80.TW

ERV-G Rubber Expansion Joint with TW flanges DIN 28460 for installation to tankers

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

Boat refuelling Australia

ZVA Slimline 2, Slimline hose assembly

HD-C, aircraft refueller

Elaflon Plus FEP hose assembly, FFC-SS fixed hose flange

Manifold, Ultra Fast Fill Quick Coupler 350 bar

for Hydrogen

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

Hose Reel with HD 38, ZVA 25, Bonding Reel red

Mobile Cabinet, airfield refuelling

KSS-SD of stainless steel

for saturated steam hoses. These hose assemblies are subject to high wear. The main stress area for hose assemblies is also at the joint end is protected.

Solvapal hose assemblies

Container cleaning
