Aircraft refuelling hoses
TW-E, HD-C Neon, PHD-F, HD-C
Unloading chemical road tanker
Tecnopal hose assembly, DDC Dry Disconnect Coupling, Guillemin adapter
SMC 50-2"
Female hose coupling of steel with Spannloc clamps
ZVA Slimline 2 GR, special type with bellows, black, guard 3 - side view
TWD-TM coupling seal
PTFE encapsulated
MC 38-11/2" Ms
Female hose coupling for hoses, brass, with Spannloc clamps
Anti-Kinking Spirals 'KSS' and 'KSS-SD'
The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
Ship bunkering
HD hose assembly on dispenser vehicle
ZVA Slimline 2 and ZVA Slimline 2 GR with sight glasses, Slimline hose assemblies
Petrol station, Czech Republic
Elaflex Pacific (Australia)
Manufacturing GasGuard GG1 nozzle
H2 Hydrogen
H2 25 D Hydrogen hose, SFC 25, MX 25, VC 25

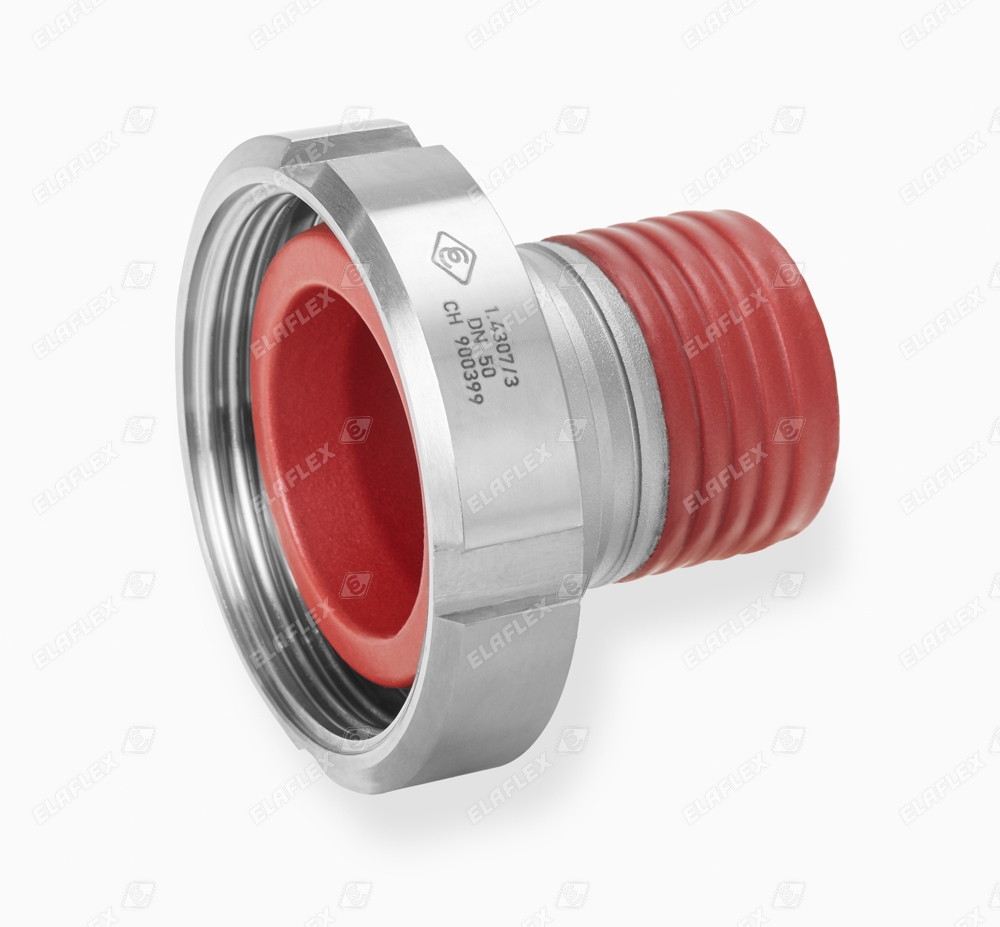

M-St 50 SSE
Female threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)
Elaflon PTFE 25
GasGuard LPG nozzle GG20DN
With long connector nut to access 'hard to reach' fill points. "DN": suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure : 1,7 cm³.
ELAFLEX Hamburg
ERV, assembling vacuum support spiral VSD
ContiTech Production ERV

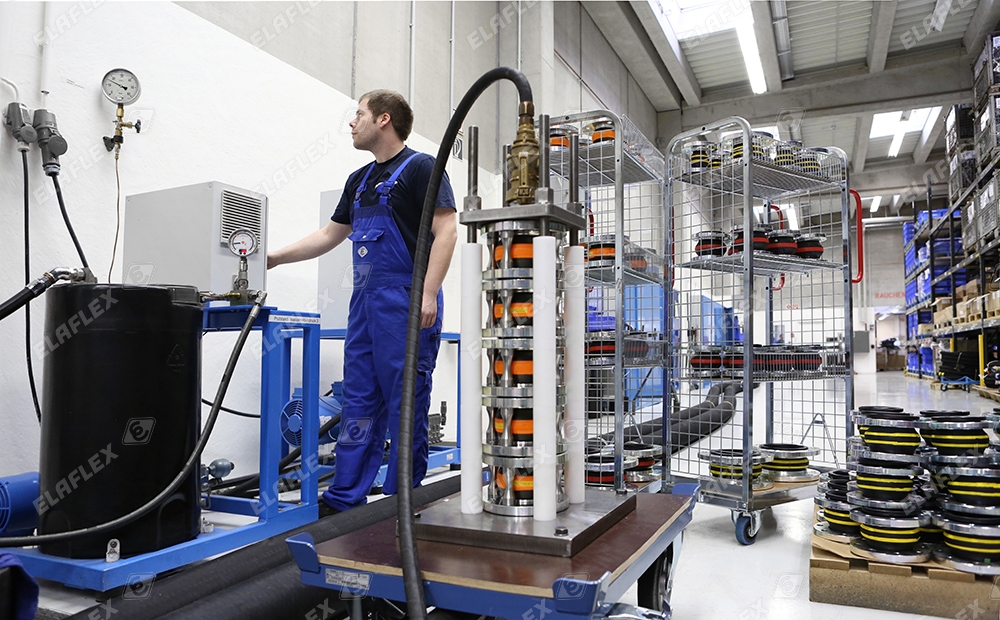

Long term elongation / compression testing
Colour production: mixer
UTS hose assemblies
Butapal LPG 10
L.P.Gas hose DN 10
M 21-1" cr
Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, red.
KR 50 - 21/2"
Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors
VX 50-2" NPT SS
Male hose coupling 2" NPT of stainless steel with Spannfix clamp
DDC-K 3" Al ADR with pressure relief
Cap for DDC-V 80
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation
DAC-V 65
Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading
Fuel Grade Identification to EN 16942 standard, direct print on product badges for ZVA Nozzles
Picture 2
TWD coupling seal
Universal hose UTS 50
ZVG 2 ACME nozzle for L.P. Gas / Autogas
LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.
ZVG 2 ACME nozzle for L.P. Gas / Autogas
visible: Magnet within the guard for the dispenser Reed Switch
Yellow Band hoses from Elaflex
Setting the standard for refuelling hoses

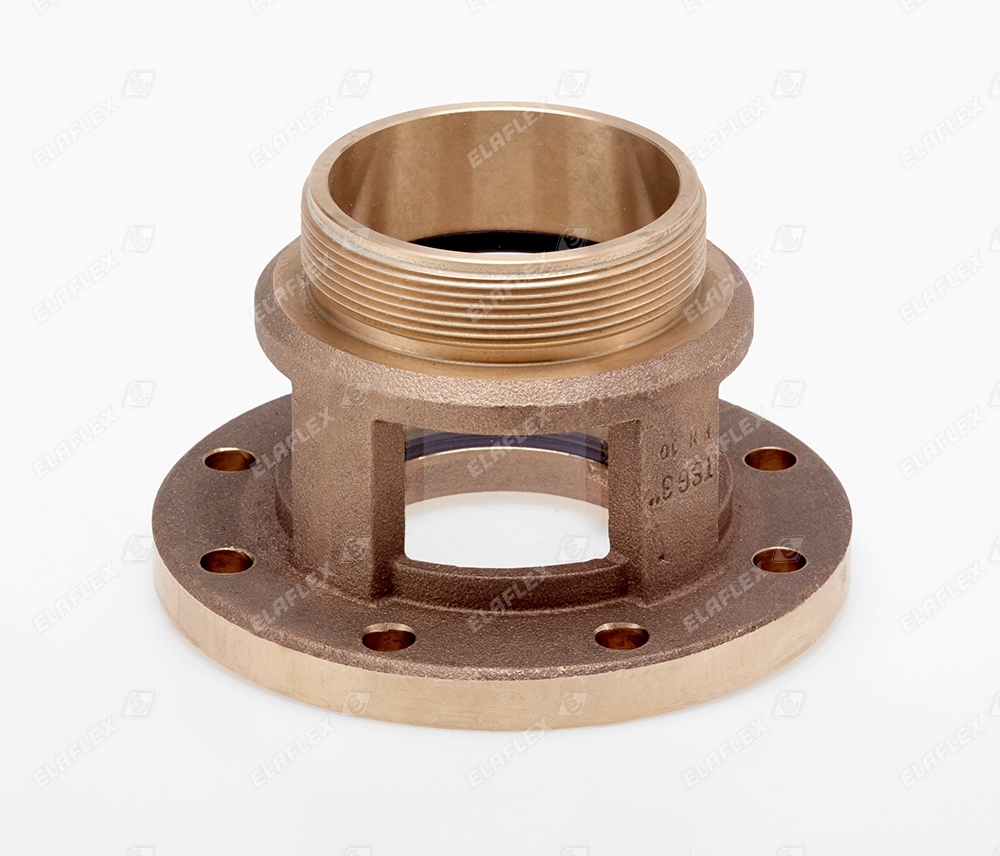

Hose Connection with TW coupling, TSG 3" Sight Glass
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
