Anti-Kinking Spirals 'KSS' and 'KSS-SD'

The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings

Compact Line HD 50, Hose Reel Spring Rewind

FEP 5O, MannTek DDC-M 5O SS

Elaflon Plus FEP hose assembly, crimped foodstuff fitting

ZVG 2 EURO

(Push-In-Coupling) to EN 13760. One-handed operation possible.

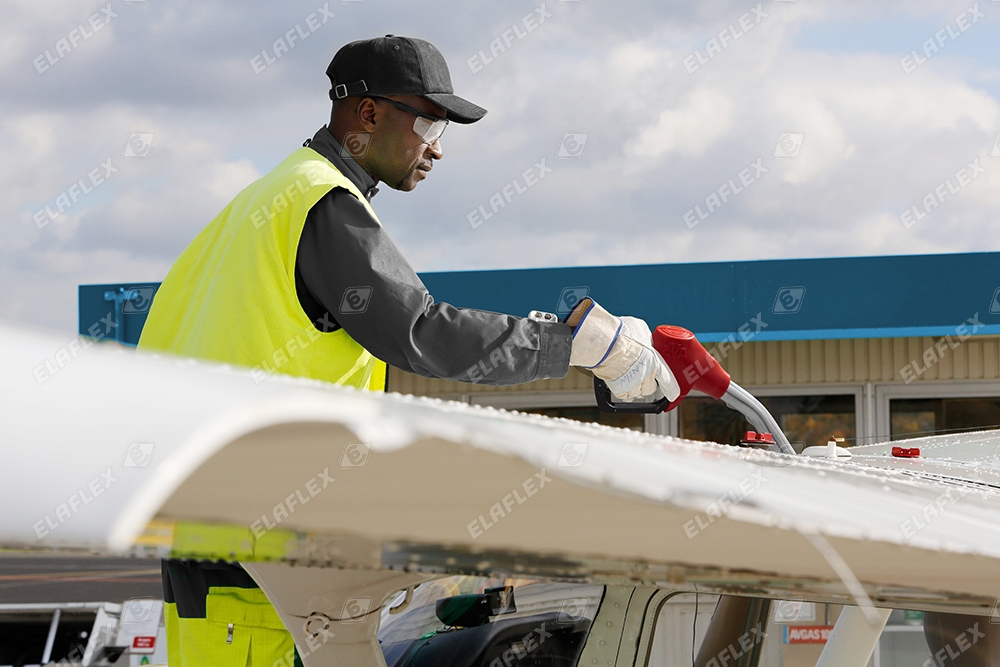

ZVA Slimline 2 for aircraft refuelling

black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly

ELAFLEX seals:

Quality is in the detail.

Nozzle boot NB-ZVF 50

for ZVF 50 Oberflügel-Zapfventile

GW-G, FGN 4" SS, RS 4" x 3" SS, MK 80 SS

f. fire brigade dangerous goods equipment trucks

CNG Safety Break (Hose Break)

separated

VSR vacuum support ring for ERV Rubber Expansion Joints

to increase vacuum resistance of a chosen ERV type. Open ring of stainless steel 1.4571

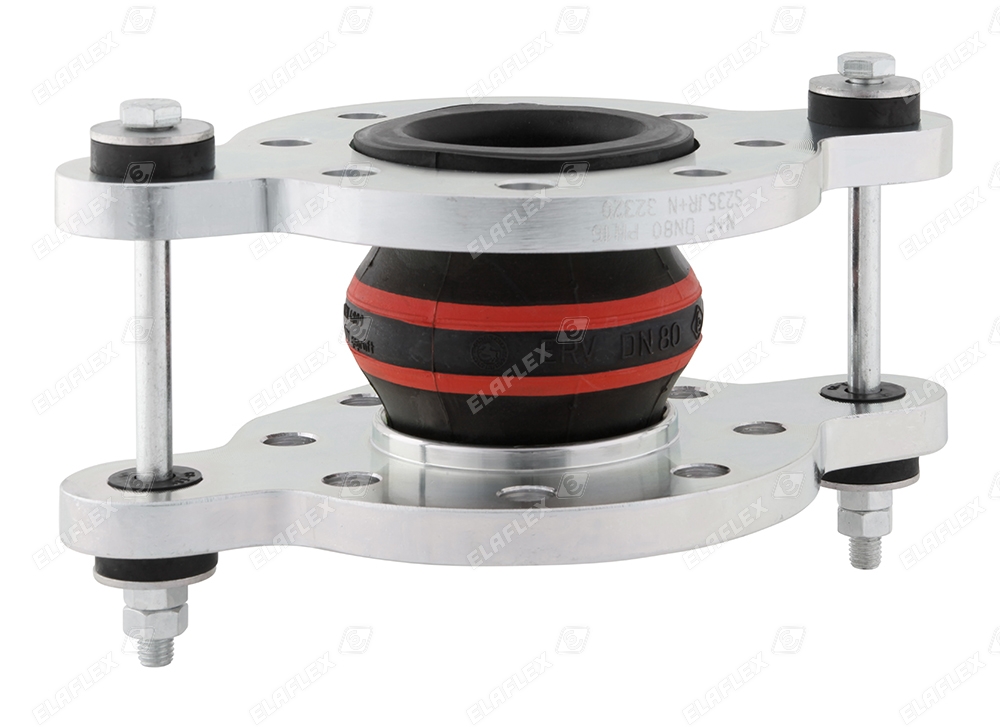

ERV-GR 80.16

GREEN BAND Rubber Expansion Joint for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.

ZVA 25 GR

For the filling of small containers and IBC with solvents. With vapour recovery.

Road tanker for heating oil delivery, DDC Dry Disconnect coupling with ADR conform cap as trailer connection

PSB Pump Safety Break for High Hose Dispensers

MC 75-3" Ms

Female hose coupling for hoses, brass, with Spannloc clamps

Nozzles and hose assemblies for L.P. Gas (LPG, Autogas)

ERV-GS; ERV-G

Rubber Expansion Joints - use in ship engine room

Rubber Expansion Joint ERV-G LT 80.16

YELLOW BAND LT expansion joints designed for low temperature applications for standard-conform petroleum based products, e.g. diesel, heating oil up to + 90° C, aviation fuels, petroleum up to + 60° C and gasoline up to + 40° C. Temperature (depending on medium) range - 40° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

M-St 50 SSE

Female threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

VB 80 SSE

TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

Pharma hose fittings

ERV-G 100.16 SS TA

Yellow Band Rubber Expansion Joint PTFE lining

Chemical manifold

FEP 5O, MannTek DDC-M 5O SS

ZVA Slimline 2 and ZVA Slimline 2 GR, Slimline hose assemblies

Petrol station, Indonesia

IBC connection with reducer RS S100x3" SS

MannTek DDC-V 80, DDC-M 80, FWS 75 PP

ZVA Slimline 2

GasGuard LPG nozzle GG30

LPGas nozzle with Bayonet connection according to EN 12806 - 2003 for the filling of commercial and passenger Autogas vehicles as well as mobile and small stationary storage tanks with propane and butane. New : 4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.

RS 2 x 3 SS

Reducer Female/Male

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

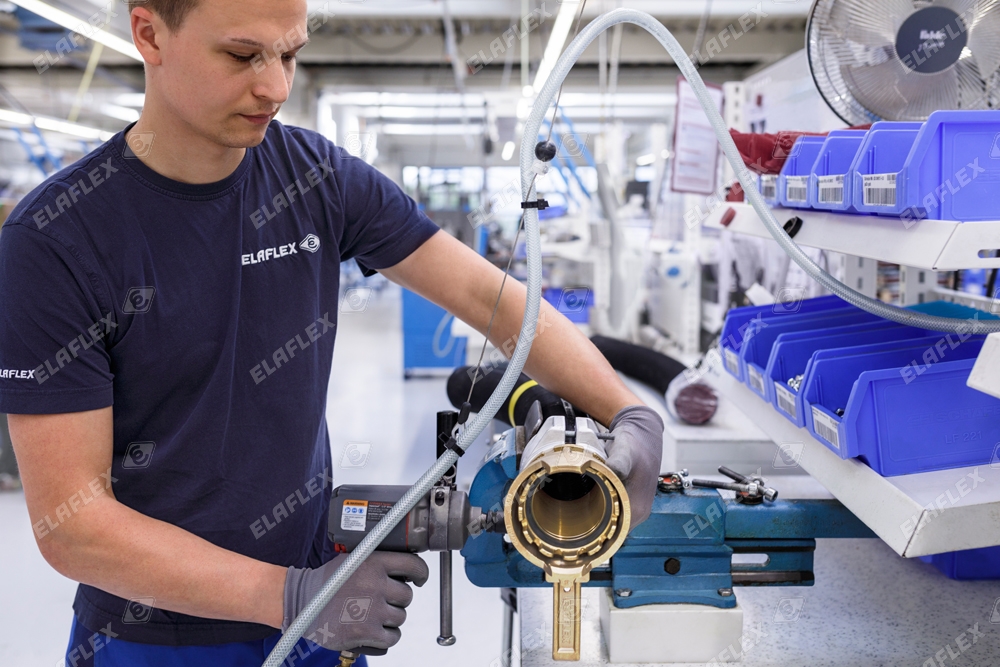

Assembling ZVA

Anti-Kinking Spiral 'KSS'

The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the new Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
