LMS 50 Blue Band solvent hose with helix
Coupling: RMC 50 SS / SS, foodstuff thread, Spannloc clamps of stainless steel

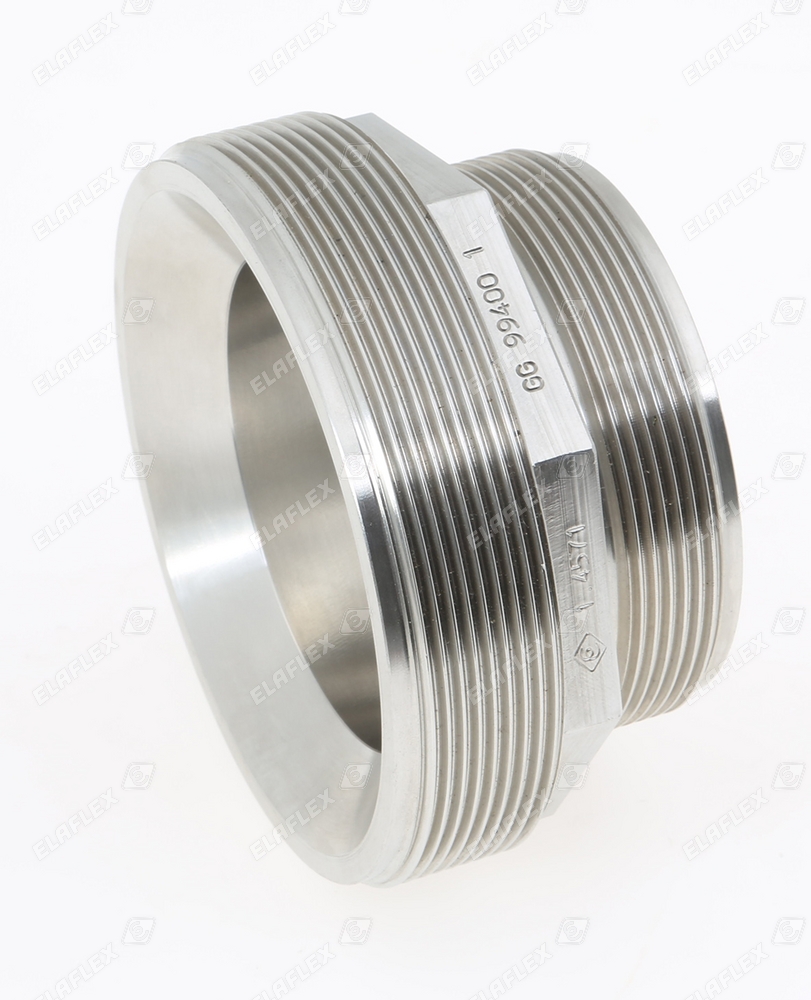

Adapter coupling DGC / ACME
DGC-V 50 x 1 3/4" ACME. Dry Disconnect Couplings are state of the art for the fast and safe loading/unloading for liquefied gas (LPG). Connecting with standard fittings is still possible with adapters, like this one with ACME thread.
ZVA Slimline 2 / ZVA Slimline 2 GR
Petrol station nozzles with (top) and without vapour recovery (below)
HD-C aircraft refuelling hose
TW 75 E
DDC-V 80 F
Dry Disconnect Coupling for Epoxi resin loading - with sensor
Petrol station in Dubai
ZVA Slimline 2 nozzle, SSB 16 Safety Break, Slimline hose assembly

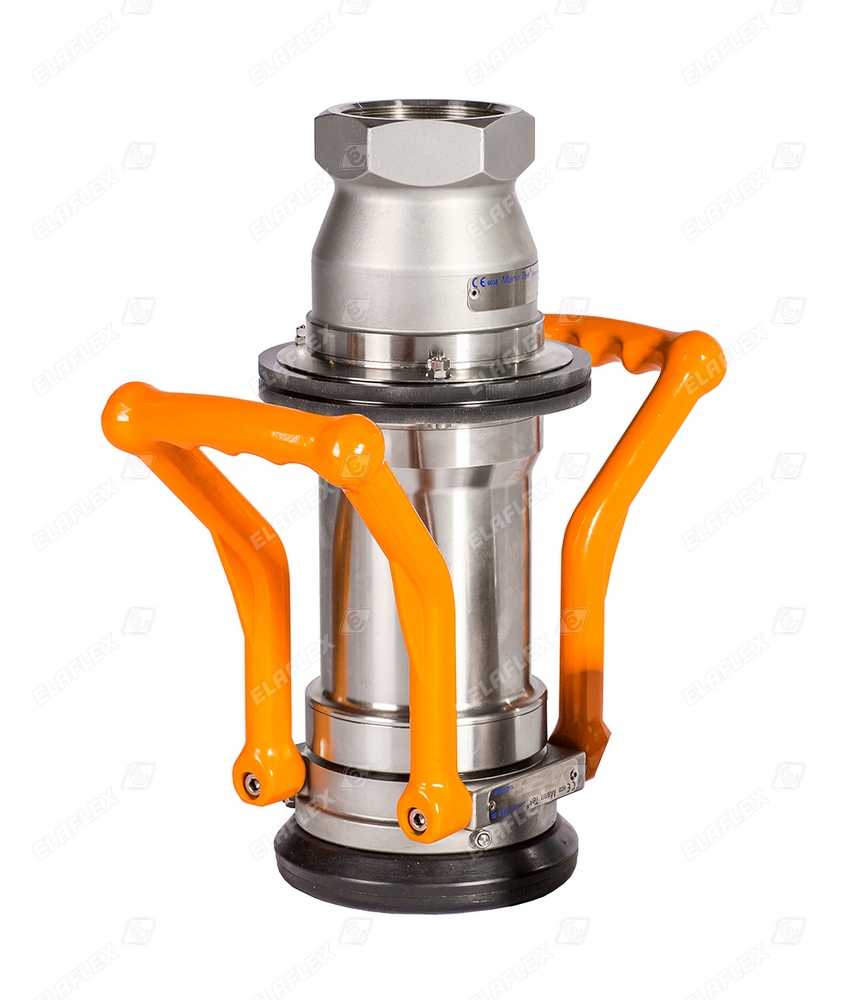

CBC-PERC 100
Cryogenic Breakaway Coupling "PERC" for LNG after pneumatic separation
LNG Refuelling
LNG Safety Break SB-LNG VL SB-LNG FL
SPANNFIX pinned Sicherheits Klemmbacken aus stainless steel
SX 75 SS
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, red.
Elaflon Plus FEP hose assembly with KSS anti kinking sleeve
flange hose fitting with special coating
Tank storage, mixer: LTW hose assemblies
Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling
Locomotive refuelling
DDC-V Dry Disconnect Coupling (filler inlet of the locomotive), DDC-K cap
ELAFLEX Hamburg
ERV flange assembly medium sizes
Composite hose assemblies with 'COPSAFE' , suitable for COP systems (cross-over prevention)
Stainless steel couplings with PFA coating, type "...SSE"
Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
ELAFLEX refuelling equipment:
Quality is in the detail.
ContiTech Production ERV
manufacturing the blank
Fuel delivery at the petrol station
LTW 75 fuel delivery hose, GPS 50 vapour balance hose
Lube oil filling, ZV 19 manual nozzle
VK 80 - 2" IG Ms
TW male coupling brass, with reduced female BSP connection, one piece adapter (special type)
SPANNLOC bolted safety clamps of aluminium
SC 75 Al
Elaflon Plus PTFE 38
Filling of small containers for chemicals
DDC Dry Disconnect Couplings for chemicals
Rail tanker loading/unloading
Ship bunkering
Taking probes; VK coupling
ZV 19.1 TD
ZV 19 manually operated dispensing nozzle, DN 19 (3/4"), up to 100 ltr./min. Special version for chemicals/solvents with PTFE seals.
M 21-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, yellow.
Overview "From terminal to nozzle"
Slimline 16 green
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
