ELAPHARM Type EPH 25
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings
ELAFLEX Hamburg
Stock special flanges
Elaflex LTW hose assembly, Matterhorn
Supply of the mountain top station via IBC unloading
V 19-3/4" NPT
Male ferrule hose coupling EN 14424 stainless steel, reusable. Slimline 19 SF (sulphur free) hose, black.
ELAFIX 40 Anti-Siphon
Magnet adapter for installation in filler necks from DN 40. This adapter allows the refilling of urea solution with ZVA HV for AdBlue®, without the risk of misfillings. Meets ISO 22241-4. – Version with anti-theft protection –
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Hebelarmkupplungen AVK 50 SS/Vi x VK 50 SS/Vi, AMK 50 SS/Vi x VK 50 SS/Vi, AVK 75 SS/Vi x VK 50 SS/Vi
ZVA Slimline 2 GR LA (with LeverAssist)
LeverAssist hold-open aid for comfortable refuelling, for countries in which latching is not allowed
HD 10 C sensing hose
Use as sensing hose for aircraft dispensers (hydrant dispensers)
LPG 200 / LPG 100
Bunkering hoses for L.P. Gas with SFC flanged hose couplings
Hose assemblies for LPG
with flange connection, ACME connection, NPT thread
ERV-OR 65.25
ORANGE BAND Rubber Expansion Joint for Liquid Petroleum Gas (LPG) acc. to EN 589. For tank trucks and refuelling stations. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically dissipative.
DCC Dry Cryogenic Coupling for LNG
TWD-TM coupling seal
PTFE encapsulated
Loading Brine (salt solutíon for winter service): CHS hose asssembly, DDC Dry Disconnect Coupling
Simultaneous Refuelling/Filling of Diesel and AdBlue®
Picture 1
Camlock cam locking couplings:
Attachment AMB dust cap with chain to Spannfix clamps (service free of charge)
DN 1" SS
Double nipple stainless steel

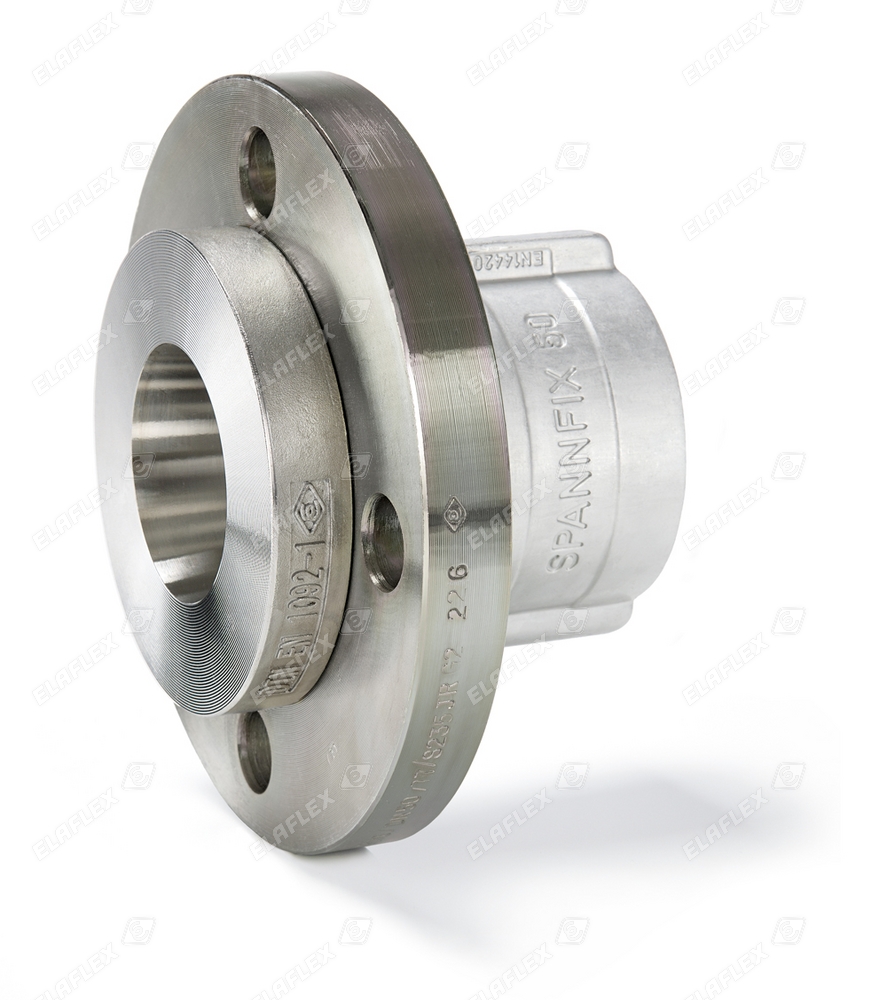

Elaflon Plus FEP hose assembly, FFC-SS fixed hose flange
UTS hose assembly with AMKC 32 SS and AVKC 32 SS
'Camlock' stainless steel female and male coupling to EN 14420 - 7 with hose tail and Spannloc clamps
Unloading petroleum products at the service station (road tanker to UST)
LG hose assembly for gravity discharge
HB hot bitumen hose - loading plant
ZVG 2 K (Korea)
LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.
Fuel delivery at the petrol station
LTW 75 fuel delivery hose, GPS 50 vapour balance hose
ELAFLEX Hamburg
Assembling ERV medium DN

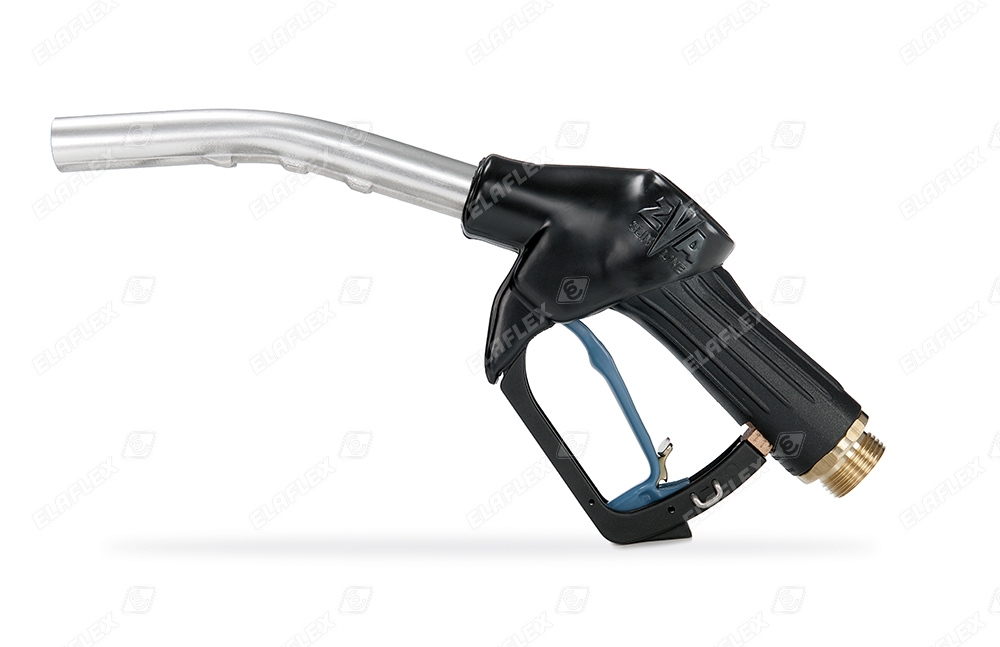

ZVA 25
Special type for solvents / chemicals
ContiTech Production hose
braid
HD-C, underwing nozzle
Aircraft refueller, large reel with aircraft refuelling hose and underwing nozzle
VX 50-2" NPT SS
Male hose coupling 2" NPT of stainless steel with Spannfix clamp
Elaflon Plus FEP 75, MK-A 80 SS
Loading and unloading of chemicals. TW coupling with active safeguard lever
