MannTek Dry Gas Couplings, Safety Breakaway Couplings and swivels for LPG
Oasis 'Priority Panel' with ball valves for CNG refuelling plants
MK 80 Ms
TW coupler of brass, to EN 144260-6 with 3" female BSP connection
SSB 32, SSB 25, SSB16
Safety Swivel Breaks (SSB)
Oasis Engineering Ltd, New Zealand (CNG refuelling products)
Production Picture 18
SG 3" Rg
Sight Glass with 3" female/male BSP thread, gunmetal
SBS 250 - marine cargo hoses with built-in nipples
heavy standard bunkering hose to EN 1765, category S 15
Underwing aircraft refuelling
TW 100, SFC 100 TW, HD 63 C Neon
ERV-G Yellow Band rubber expansion joint, installation underneath a road tanker

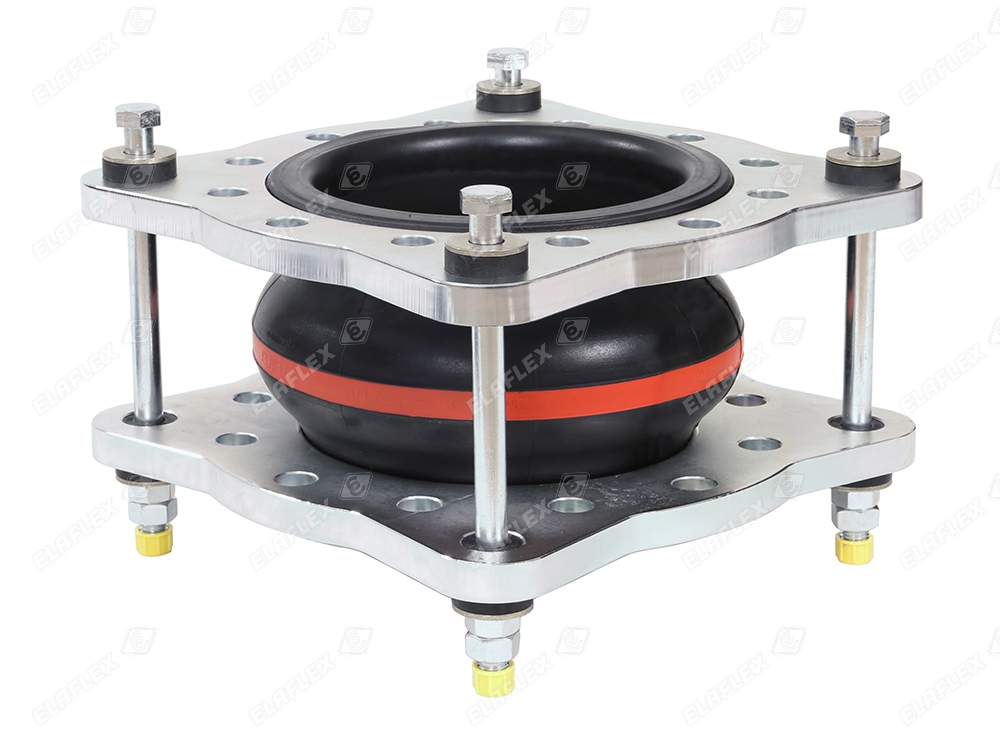

ERV-GR 80.16
GREEN BAND Rubber Expansion Joint for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.
FF-St 80 SSE
Fixed flange hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)
ELAFLEX Hamburg
CAD construction
LNG Refuelling
N-LNG Nozzle, push handles to couple
RMC 25 SS
Hose coupling with female foodstuff thread and Spannloc clamps
ZVF 25 for aircraft refuelling
dust cap and ground cable assembly
IBC Hose Coupling MC 38-S 60 SS, MX 38-S 60 SS
direct connection to the standard outlet S 60 of IBC
Marine bunkering and cargo hoses
offshore supply
Anti-Kinking Spirals 'KSS' and 'KSS-SD'
The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
Ship sided connectors for bunkeringof fuel, lube oils, fresh water; unloading of sewage
DDC Dry Disconnect Couplings with caps
ERV-G Yellow Band rubber expansion joints, manhole of a petrol station
Aircraft refuelling
Carter Underwing Nozzle, HD63C Neon, ZVF 50 JET, SC 50 Al, HD 50 C, Hose Bead BD 50
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Machining spouts
ZVA Slimline 2 GR, black, guard 3 - bottom view
IBC unloading
Female hose coupling MC 38-S60 SS (with Spannfix clamps). Direct connection of a hose assembly to the IBC.
ZV 400, HD hose assembly on road tanker
Petrol station in Singapore
ZVA Slimline 2 nozzle with Splashguard, SSB 16 Safety Break, Slimline hose assemblies
MC 38-11/2" SS
Female hose coupling for hoses, stainless steel, with Spannloc clamps
Filling of Heating Oil Tanks: Adapter KR 50-2 3/4" (Switzerland)
for difficult to reach filler inlets
VB 80 ADR SS / VB 100 ADR Al with pressure relief
Plug for TW female couplers
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation
ERV VSD:
ERV with vacuum support spiral. Spiral of AISI 316 Ti, used when the vacuum resistance of the chosen ERV is not sufficient.
