Elaflex hoses
PTFE, FEP, HD, UTS
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Assembling ZVA components
SL 16 for AdBlue® (blue) hose assembly with anti-kinking sleeve, colour sleeve
Pump Safety Break
PSB 16
Slimline quality dispensing hose for the forecourt
SL 21 black
Oasis FV103 45° Fill Valve with NC 203 P36 Nozzle, for CNG
NB-ZVF 50
Noozle Bootsfor ZVF 50 JET Overwing Nozzle
Hose Trolley
HTR-AF
BD 63, HD 63 C
Aircraft refuelling hoses with ELAFLEX Hose Beads 'BD'. Details see Information 7.17
ELAFLEX Hamburg
ZVG 2 K (Korea)
suitable for passenger and heavy duty vehicle refuelling in markets utilising the 'J15' fill point receptacle.
Hose tube of road tanker for chemicals
MK-A 80 SS with active safeguard lever ; VB 80 SS dust plug
Nozzle boot NB-ZVF 50
for ZVF 50 Oberflügel-Zapfventile

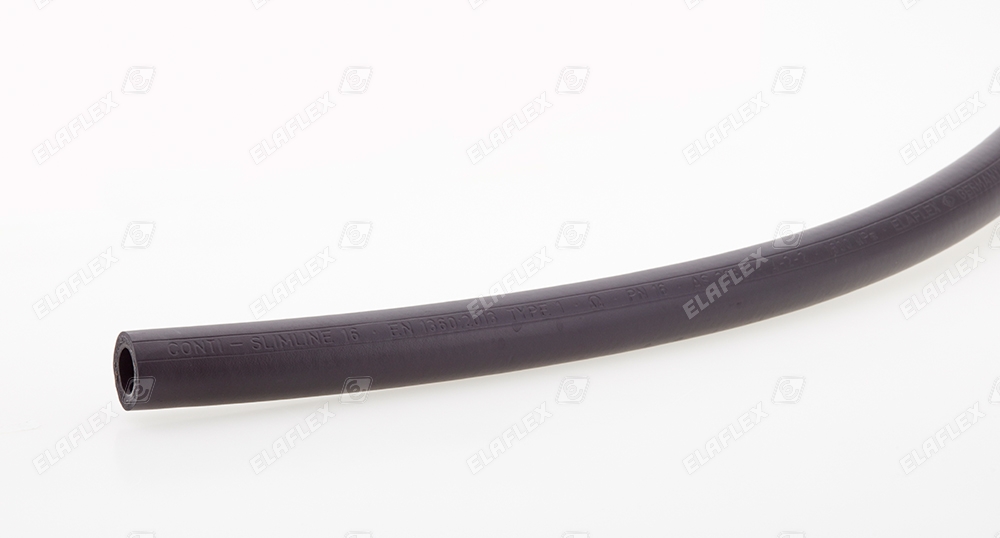

Slimline 19 black
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
ERV-G ... TW
"Yellow Band" Rubber Expansion Joints; tank truck
Compact Line HD 50, Hose Reel Spring Rewind
FEP 5O, MannTek DDC-M 5O SS
Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers
Lining UPE - resistant to all petrochemical media, also with high content of aromatics or other aggressive additives; cover CR - oil resistant
Nozzles and hose assemblies for the forecourt
ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies
IBC unloading
Female hose coupling MC 38-S60 SS (with Spannfix clamps). Direct connection of a hose assembly to the IBC.
M-St 50 SSE
Female threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)
Pipe with AVKI 50 SS, hose assembly with AVKX 50 SS, lever movement
'Camlock' stainless steel female and male coupling to EN 14420 - 7
Oasis FV103 with NC203 P36, Light Duty Fill Valve and Transit Nozzle for CNG
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, yellow.
Hot stamping process, TW coupling part
ZVA Slimline 2 with Splashguard, Slimline hose assembly blue
Malaysia
ERV-BR 100.16
BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.
SFC 38 SSE
Swiveling flange hose coupling with Spannfix clamps. Material: stainless steel with universally resistant PFA coating (red)
Manifold for incoming media, chemical industry
Elaflon PTFE universal hose, AMK 50 EASY (Easyloc cam locking couplings with automatic lever lock)
Boat refuelling, Hose Reel, ZVA Slimline 2

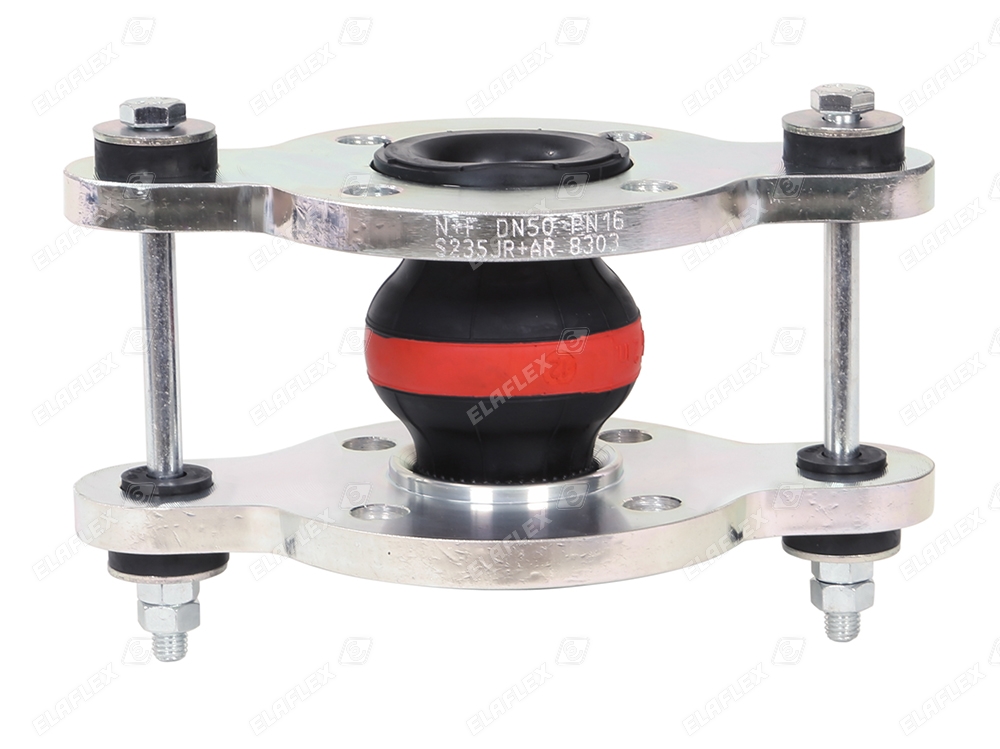

ERV-R
"Red Band" Rubber Expansion Joints; wastewater pump
