LNG Refuelling
LNG truck refuelling with 'N-LNG' Nozzle coupled to fuel, LNG 25 fill hose assembly with cover, bonding cable
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
Yellow Band hoses from Elaflex
Setting the standard for refuelling hoses
Elaflon Plus FEP hose assembly, crimped foodstuff fitting
Truck refuelling with LPG (L.P. Gas, Autogas)
ZVG 2 ACME nozzle, LPG 16 hose
Elaflon PTFE
Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.
Boat refuelling, ZVA 25
Elaflex Cam and Groove Couplings ('Camlock'): AMKX 50 EASY
EASYLOC stainless steel coupler to EN 14420 - 7, with lever arrest. Picture shows the version as one-piece coupler with integrated hose tail and Spannfix stainless steel clamp
ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

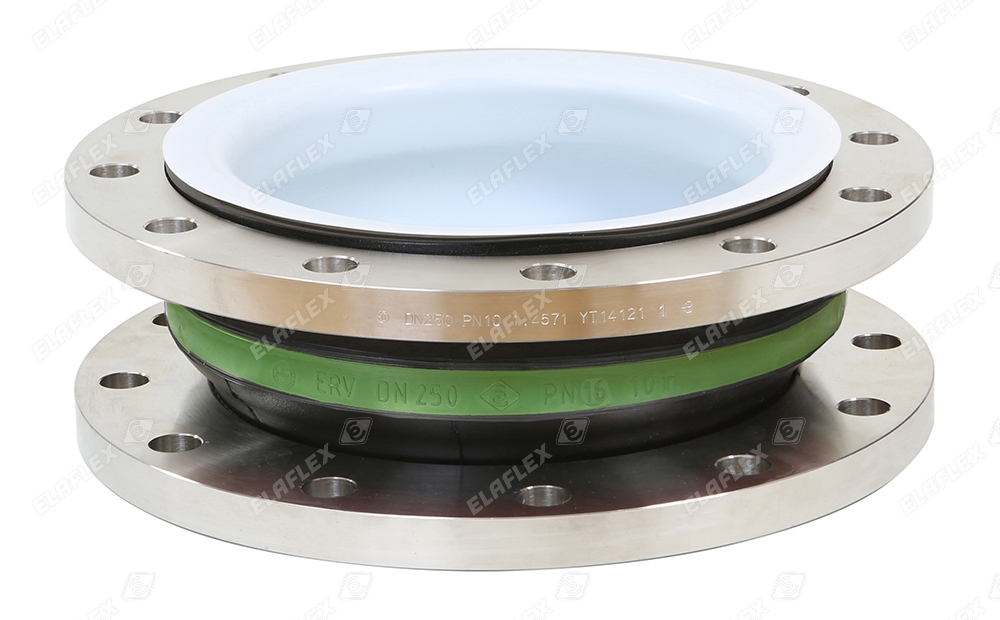

ERV Rubber Expansion Joints
Picture 5
Oasis CV Heavy Duty Check Valves for CNG
HD 100 C NEON, HD 10 C sensing hose
Type HD-C, aviation hose
Unloading petroleum products at the service station (road tanker to UST)
LG 3" hose assembly for gravity discharge, LTW 50 hose assembly for vapour balance
Pharma hose fittings
MB 50 TS SS Lockable fi ll pipe coupling
with VK 50 SS
ERV-CR
"CR" Rubber Expansion Joints - installation in sewage plant
HD 100 C Neon, underwing refuelling
Aircraft Dispenser
ZVA Slimline 2, filler inlet, Diesel refuelling
ZVA Slimline 2 GR, ZVA Slimline 2
Petrol station Germany
ERV-G AF
Suitable for piping systems of aviation refuelling or dispensing vehicles in accordance to EN ISO 1825/EI 1529. Suitable for all aviation fuels.
LNG Refuelling
LNG Safety Break for installation on LNG dispensers SB-LNG FL-J
PAL hose assemblies:
PCD 32 / RMC-SS, Butapal 32 / ACMX, Polypal Plus 50 / SFC 50 SS, Tecnopal 38 / MKX-SS, Pyropal 38 / MC38
Connection aircraft refueller to flanged hose assembly
ERV-G 100 TW, HD 100 C, TW-flange
ERV-G
"Yellow Band" Rubber Expansion Joints for L.P. Gas; pumping station at tank storage
Railtanker
MannTek DDC-V 80 F Dry Disconnect Couplings (tank unit with flange), Pressure Caps PN 25 with pressure relief
Grafik ARK 19
Safety Break for LPG (Autogas) dispensers. Hose Break. Reassembly after separation without tools.
ZVA 25 for AVGAS
red scuffguard, AVGAS sticker; Slimline hose assembly
ZVA Slimline 2, black, guard 3 - detail view with new hold-open latch
HB 50 ST tar spraying hose
Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Contour check
