ERV-R 100.16

RED BAND Rubber Expansion Joint for water, drinking water (DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature range - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

TW coupling wrenches of brass or steel

EW K 50 Ms, EW K 80 Ms, EW K 100 Ms, EW K 50 St, EW K 80 St, EW TWS 50, EW TWS 80

ERV-R

"Red Band" Rubber Expansion Joints with limiters / pump station

GasGuard LPG nozzle GG1E

eoconomic type for industrial refueling / attended refueling. Release volume on valve closure: 1,9 cm³.

ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

Ship sided connectors for bunkeringof fuel, lube oils, fresh water; unloading of sewage

DDC Dry Disconnect Couplings with caps

Lube Flow Modul for IBC loading/unloading

FWS 50 PP, DDC-M 50, HD 50, ZV 400, ERV-G 50 Special Type

VB 80 ADR SS / VB 100 ADR Al with pressure relief

Plug for TW female couplers
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

LNG Refuelling

LNG Nozzle 'N-LNG' coupling

Cargo loading / unloading of ship, STW 150, Vapour Line

Italy

ELAFLEX seals:

Quality is in the detail.

Customer protected special design ZVA Slimline 2 GR nozzle

Nozzle boot NB-ZVF 50 SR

for ZVF 50 Oberflügel-Zapfventile, with Spout Retainer

From Terminal To Nozzle

Elaflex refuelling equipment

Ship bunkering with STW hose assembly and MannTek DDC Dry Disconnect Couplings

Scandinavia

Upstream Oil Industry, TW hose assemblies

Kuwait

ERV-GR 80.16 ZS 2

GREEN BAND Rubber Expansion Joint with "ZS" limiter (tie rods with outer limitation in rubber bushings)

ELAFLEX Hamburg

Commissioning / Pick by Voice

ELAFLEX Hamburg

ERV marking after test

Aircraft Refuelling Skid

HD-C hose assembly, ZVA 32 nozzle, SG1Al sight glass, hose reel made by ELAFLEX Italy

Manufacturing warm forged parts

Example SC 150 Spannloc clamp

Lube oil plant: manifold with DDC-V Dry Disconnect Couplings

ZVA Slimline 2 GR, guard 3, red, Coax hose assembly with Colour Sleeve red

ZVA HV for AdBlue®, SSB 16 SS / BS 16, SL 16 for AdBlue®

Urea solution (DEF, ARLA 32) for trucks: nozzle, Safety Break / Break Sleeve and hose assembly

Marine bunkering and cargo hoses

ship to ship bunkering

Rubber Expansion Joint ERV-CR 80.16

CR Expansion Joints for cold and warm water, swimming pool water, sea water, waste water (weakly sour or alkaline) also oil containing, cooling water with protective oils against corrosion, lubricating oil, grease and air, compressed air. Temperature range (depending on medium) - 25° C up to + 90° C, temporarily up to + 100° C. Electrically non-conductive.

Camlock Cam Locking male adapter AVK 50-2" Ms (brass)

GasGuard LPG nozzles: optional Magnet in the guard

For contactless activation of dispensers with reed switch technology

Alternative fuels: DME Dimethyl Ester

DGC Dry Gas Coupling, EFL 16 Fluorline hose assembly

ZVA Slimline 2 / ZVA Slimline 2 GR

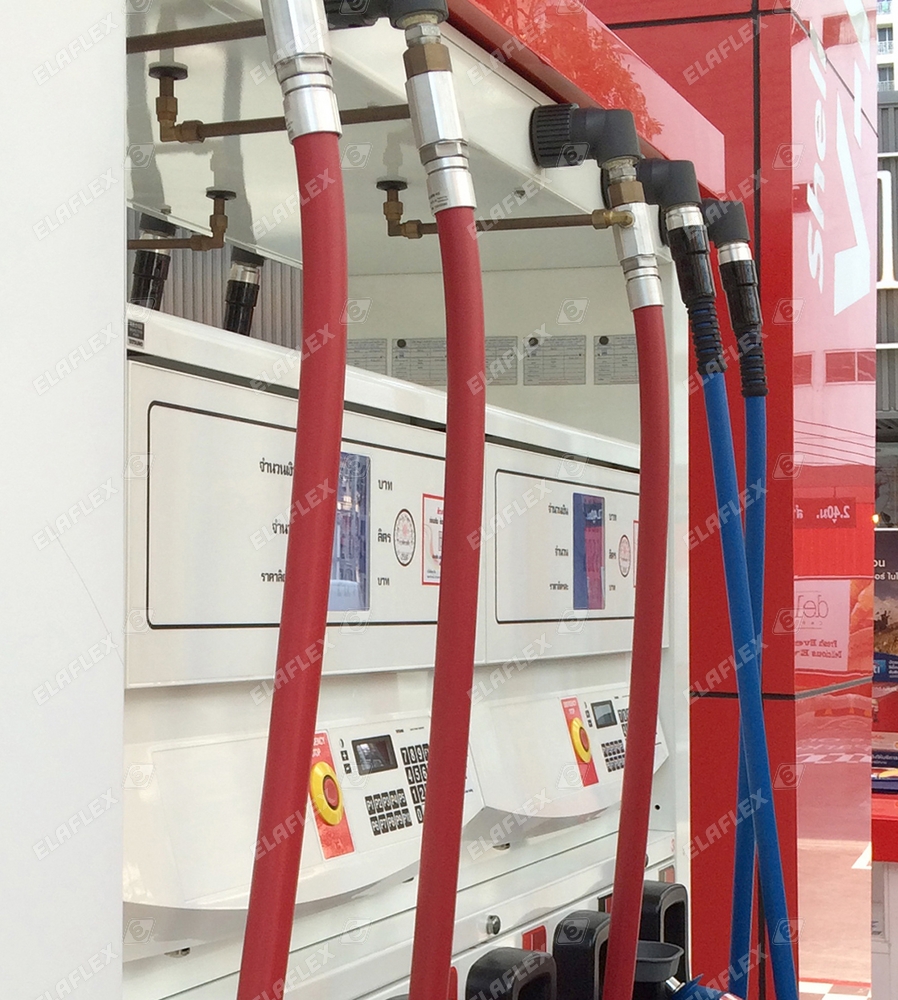

Petrol station nozzles with and without vapour recovery, hose assemblies
