Nozzles and hose assemblies for the forecourt
ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies
Oasis CNG refuelling equipment:
Ultra Fast Fill System (Diagram, English)
Hose trolleys, HD 100 C
Type HD-C, aviation hose, Aljac bonding reel und Lanyard reel
CSB 21 Coax Safety Break: Separation
AMB 50 SS
'Camlock' stainless steel dust cap to EN 14420 - 7 for male adapters AVK with captive seal

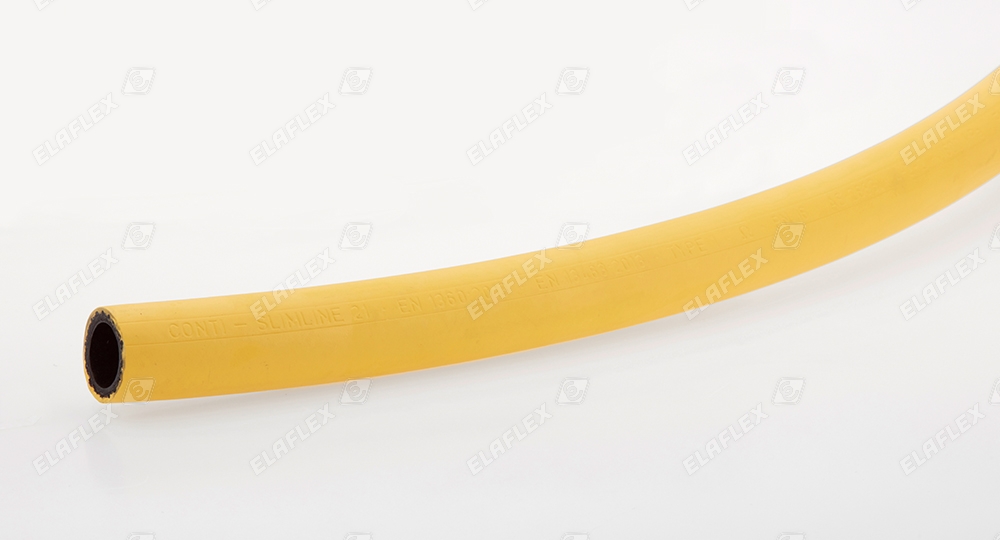

Slimline 21 yellow
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.
Equipment truck for dangerous goods accidents, Elaflon PTFE universal hose assembly, DDC Dry Disconnect Coupling
ELAPHARM Type EPH 25
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
DDC-M 100, TW hose assembly
Rail tanker bottom loading with Dry Disconnect Coupling
CBC-PERC 100
Cryogenic Breakaway Coupling "PERC" for LNG after pneumatic separation
Nozzle boot NB-ZVF 50 SR
for ZVF 50 Oberflügel-Zapfventile, with Spout Retainer
Simultaneous Refuelling/Filling of Diesel and AdBlue®
Picture 2
DDC-M 100, HD-C, airport depot
Dry Disconnect Coupling, Yellow Band hose, at airport depot
Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot
Rail tanker unloading of petroleum based products
LTW hose assemblies, TW couplings
Marking of High Temperature Types ZVA Slimline 2 / ZVA Slimline 2 GR
For regions with exceptionally hot summer conditions which may lead to particularly high fuel temperatures we offer High Temperature (HT) nozzle types, available for ZVA Slimline 2 and ZVA Slimline 2 GR.
ELAFLEX refuelling equipment:
Quality is in the detail.
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, green.
ELAFLEX Hamburg
ERV assembling
ZVF 50 JET overwing refuelling
with HD-C hose assembly
RS 4 x 51/2 SS
Reducer Female/Male
Unloading petroleum products at the service station (road tanker to UST)
LG 3" hose assembly for gravity discharge, LTW 50 hose assembly for vapour balance
ERV-G 100 TW
Aircraft refueller
HD 10 C sensing hose
Use as sensing hose for aircraft dispensers (hydrant dispensers)
Composite hose assemblies with 'COPSAFE' , suitable for COP systems (cross-over prevention)
ELAFLEX Hamburg
Assembling dispensing hose: marking
Elaflon Plus FEP 50
Unloading chemical road tanker
Elaflon PTFE hose assembly, TW couplings
ELAFLEX Hamburg
ELAFLEX stock hoses
Tank container filling coupling: MK 80-32 SS with VB 80 SS
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
