IBC unloading

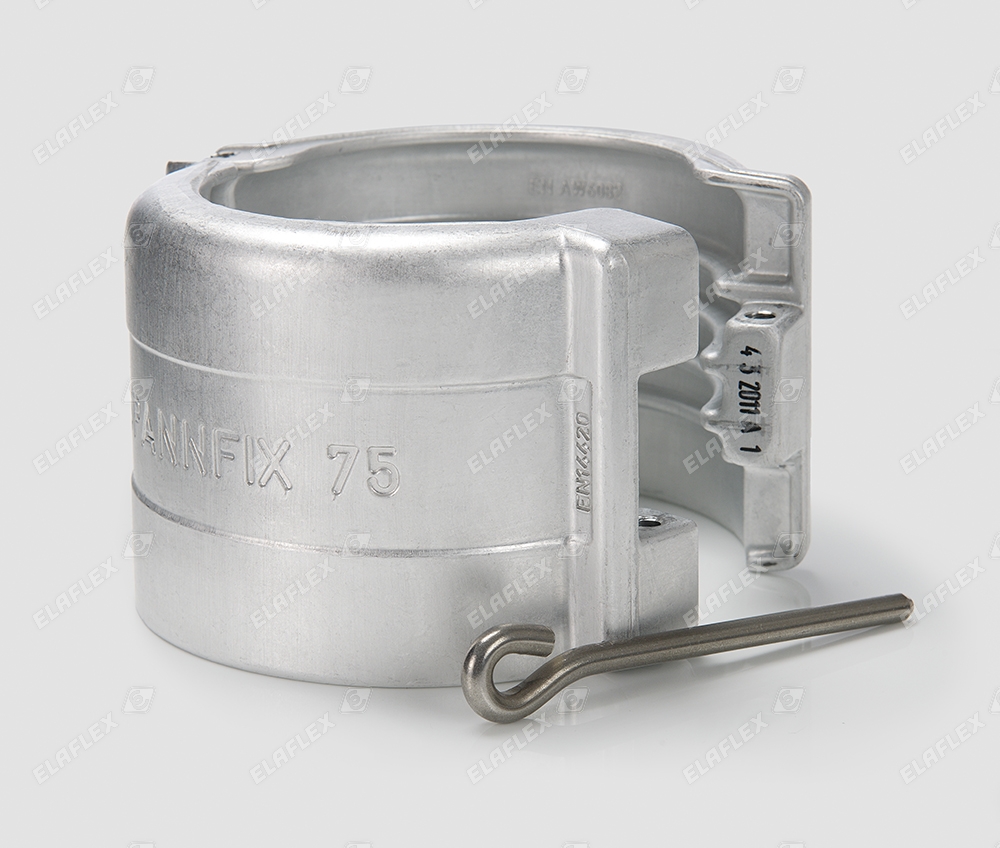

Female hose coupling MC 38-S60 SS (with Spannfix clamps) and LMS solvent hose. Direct connection of a hose assembly to the IBC.
ERV-CR 100 (4")
'CR' Rubber Expansion Joint for cold and warm water / ship engine room
ZVF 50 JET
ERV Rubber Expansion Joints
Picture 1
Road tanker hose reel, made by Elaflex Italia
with LPG hose assembly
Manifold for filling chemical tanktrucks
UTS hose assemblies
Elapharm foodstuff fittings DIN 2817
Production TW couplings
ELAPHARM Type EPH 25
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
KW bronze corrugated pipe with cathodic protection
Cathodic protection flexible pipe connector (bronze corrugated pipe) for electrically insulating, cathodically protected installations. Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps - and directly underneath the dispensers
Hot stamping process, production TW coupling parts
RS 4 x 51/2 SS
Reducer Female/Male

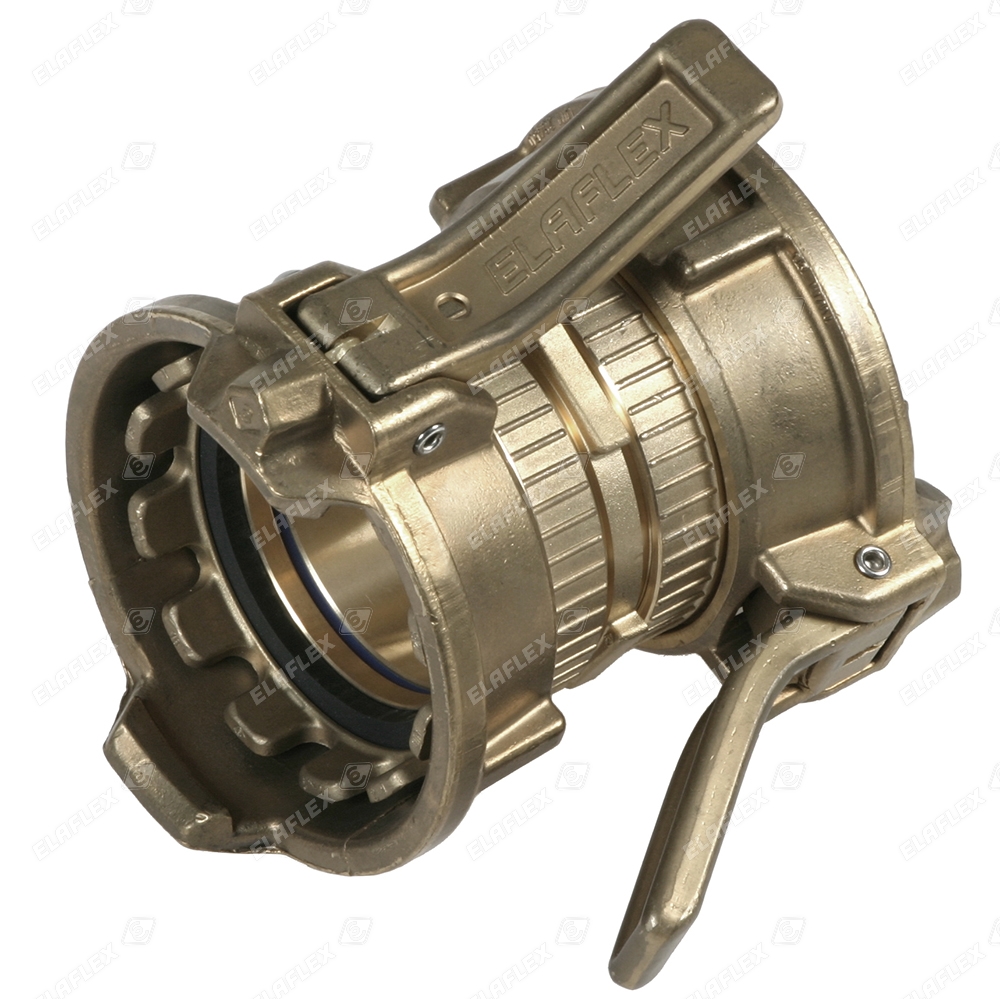

MK-A 80 SS, TW female coupler with Active Safeguard Lever
connected: hose assembly with VKX 75.80 SS
ERV Rubber Expansion Joints
Picture 5
ELAFLEX Hamburg
ERV assembling
Construction site / on site refuelling:

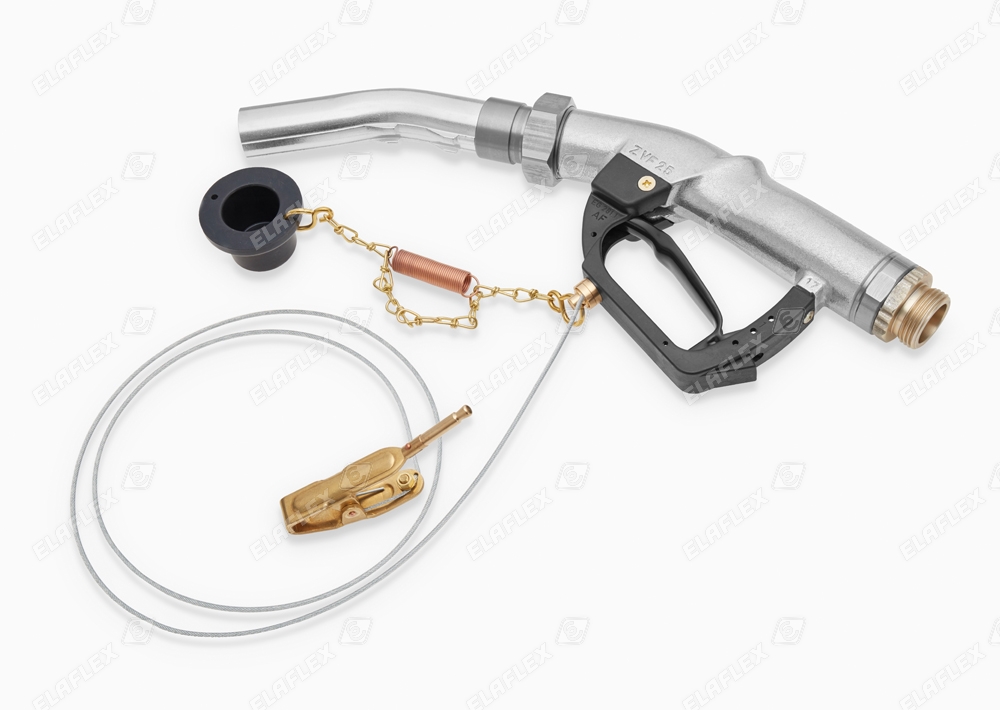

ZVA 32 (automatic nozzle), road tanker
LNG Refuelling

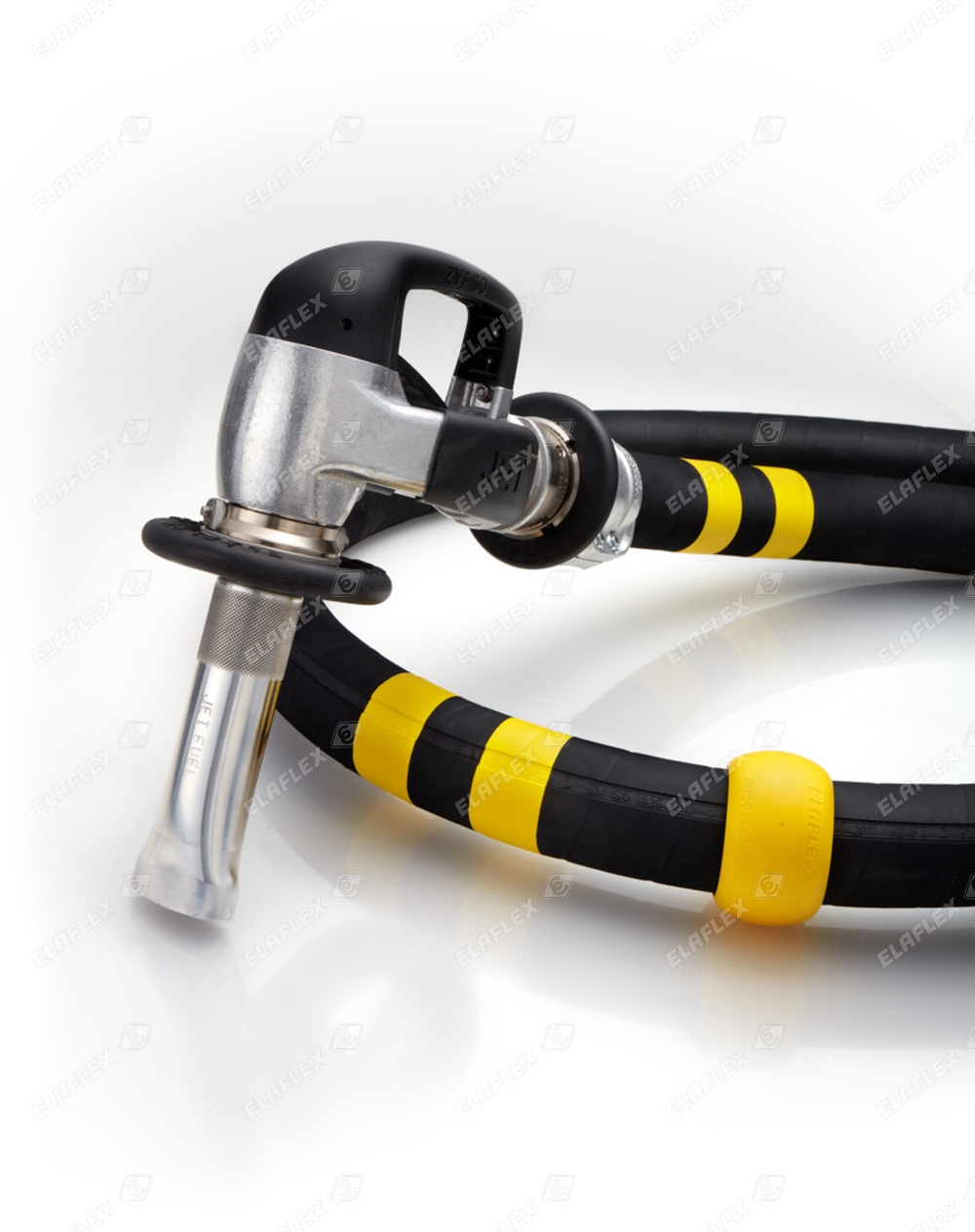

N-LNG Nozzle, push handles to couple
HB 50 ST tar spraying hose
Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).
V 16-1" cr

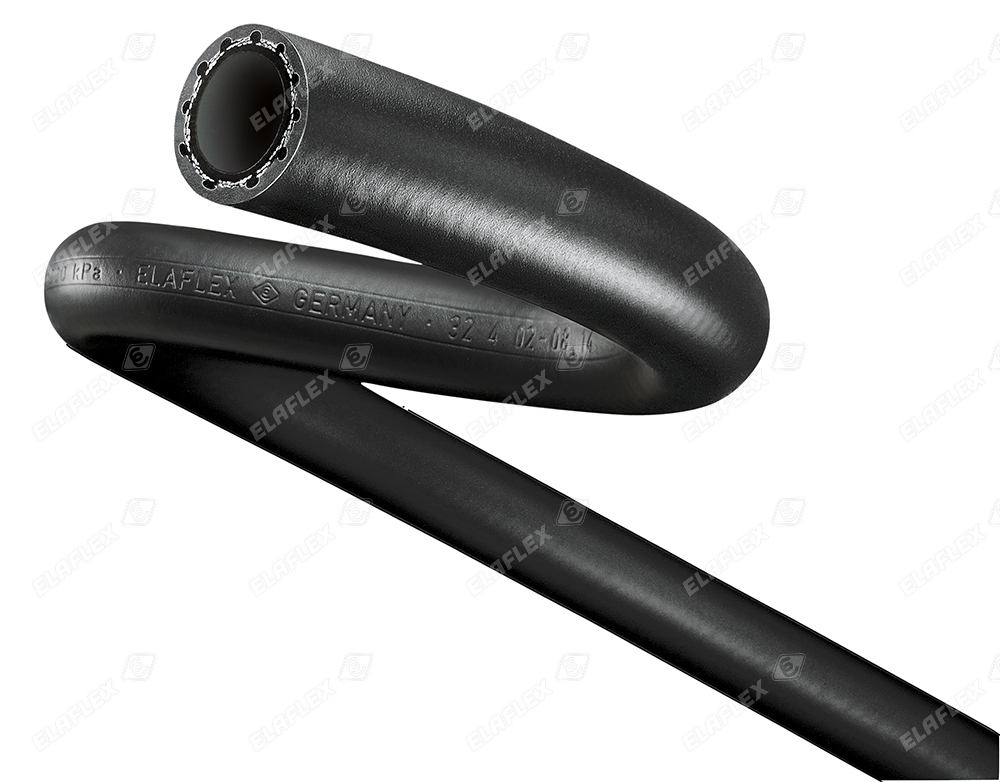

Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, blue.
RN 2 x 3 SS
Reducing nipple
ZVA 25 nozzle, Slimline hose assembly
Dispenser for truck refuelling
Manufacturing of turned parts
HD 38 C NEON, Aljac bonding reel
Airfield refueller (e-refuelling technology)
SG 1" 1x0 Al
Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components (German)
Hose Beads
BD 50, BD 63
IBC loading and unloading
MannTek DDC-M 50, FWS 50 PTFE
Elaflon Plus FEP
hose assemblies, lacquer filling
ERV-GR 80.16
GREEN BAND Rubber Expansion Joint for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.
Unloading petroleum products at the service station (road tanker to UST)
LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.
