Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
Road tanker with large hose reel, HD hose assembly, ZV 500 nozzle
ContiTech Production ERV
Long term elongation / compression testing
ELAFLEX Hamburg
Aerial view over the ELAFLEX premises
DN 1" SS
Double nipple stainless steel

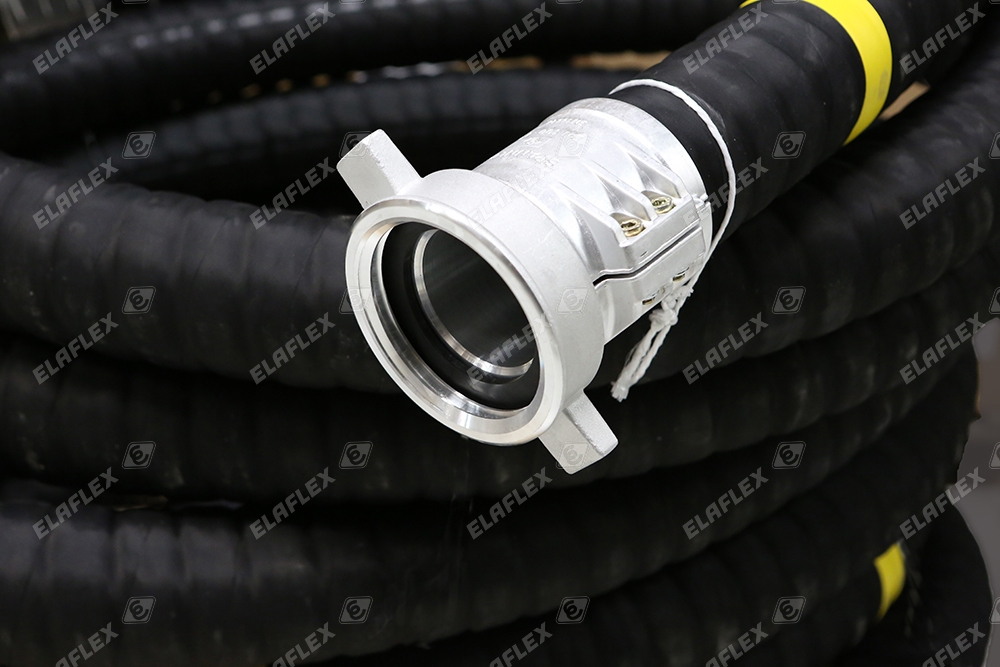

HD 50 reel hose for petroleum based products, VC 50-2" Spannloc clamped male coupling
Aircraft refuelling hose with reflecting stripes, Hose Beads 'BD' which notably improve the handling as they reduce friction against the tarmac, next generation overwing nozzle ZVF 50
SG 80-TW1 Al
Sight glass with rods, with TW flanges to DIN 28460
Lube oil plant: manifold with DDC-V Dry Disconnect Couplings
Hose Reel with hydraulic rewind system orange, LPG 32, DGC-M 50
Elaflon Plus FEP hose assemblies, one side open end
up to DN 50 grey cover / from DN 63 black cover
NB-ZVF 50 SR, ER 583 PTL
Nozzle boot f. ZVF 50 with additional spout retainer
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure 10 bar (140 psi). Temperature range -40° C up to +55° C
Oasis Fill Valves at CNG service station for buses
Road tanker hose reel, made by Elaflex Italia
with LPG hose assembly
ZVA Slimline 2 and ZVA Slimline 2 GR, Slimline hose assemblies
Petrol station, Germany
ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings
MK-A 80 SS, TW female coupler with Active Safeguard Lever
connected: hose assembly with VKX 75.80 SS
Helicopter refuelling winter / Canada
ZVF 50, HD 50 C NEON
ELAFLEX Hamburg
ELAFLEX stock hoses
KR 50
bend with VK 50 x MK 50, 60°, with VB 50 P dust plug
Solvent filling with integrated vapour recovery in the nozzle
ZVA 25 GR, UTS hose assemblies
Rail tanker unloading of petroleum based products
LTW hose assemblies; Poland
AMKX 50 SS
'Camlock' stainless steel steel coupler to EN 14420 - 7 with hose tail and Spannfix clamps
ZV 500 for chemials
Bulk filling of Methylene Chloride
Ship bunkering
Taking probes; VK coupling
DDC-V 50 SS F, DDC-K 50 blue (f. AdBlue)
VB 80 SSE
TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
BD 63 Hose Beads
to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.
Anti-Kinking Spirals 'KSS' and 'KSS-SD'
The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
