EA 866 scuffguard black with ZVG 2 DISH nozzle
The scuffguard for LPG / Autogas nozzles shows the LPG fuel grade marking required by standard, and offers a large advertising space
Ship bunkering
FHD hose assemblies, Port of Gothenburg / Sweden
Universal hoses UTL with DDC Dry Disconnect Couplings
LMS 50 Blue Band solvent hose with helix
Coupling: RMC 50 SS / SS, foodstuff thread, Spannloc clamps of stainless steel
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Hebelarmkupplungen AVK 50 SS/Vi x VK 50 SS/Vi, AMK 50 SS/Vi x VK 50 SS/Vi, AVK 75 SS/Vi x VK 50 SS/Vi
Elaflon Plus FEP hose assemblies, one side open end
up to DN 50 grey cover / from DN 63 black cover
ZVF 25 for aircraft refuelling
dust cap and ground cable assembly

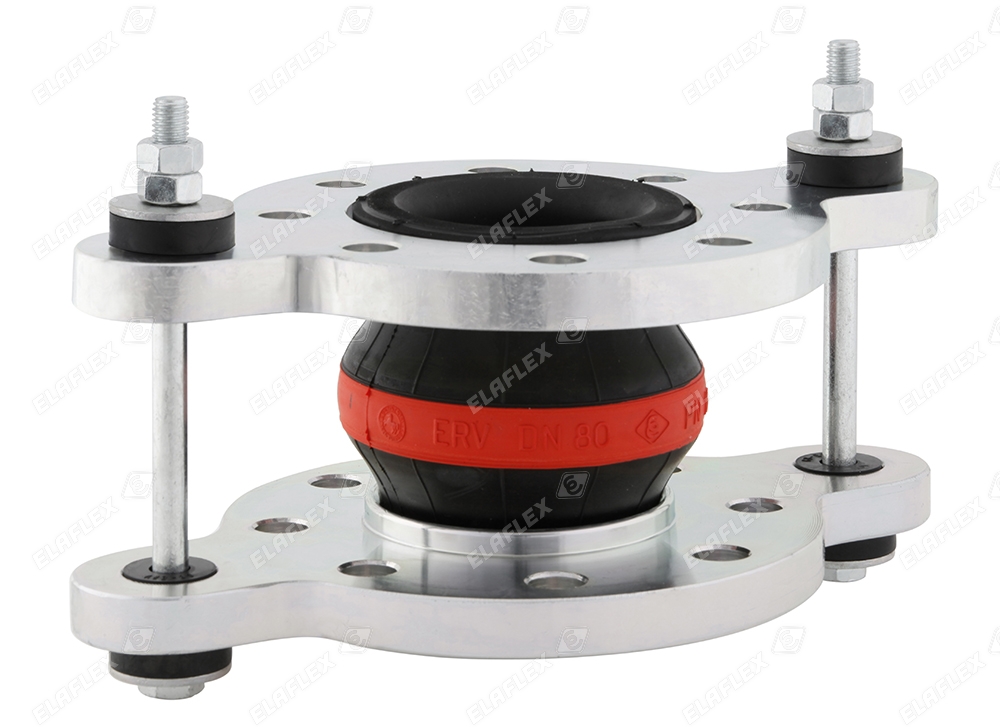

ERV-ROTEX expansion joint, inhouse emergency power generator
Rose Reel spring rewind white, HD 38 C, ZVF 50
IBC connection with reducer RS S100x3" SS
MannTek DDC-V 80, DDC-M 80, FWS 75 PP
Nozzles and hose assemblies for the forecourt
ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies
Ship bunkering
TW hose assembly
IBC unloading
Female hose coupling MC 38-S60 SS (with Spannfix clamps). Direct connection of a hose assembly to the IBC.
MB 50 SS
Dust cap for VK 50, stainless steel
ELAFLEX Hamburg
Coax hose assembling, colours
GasGuard LPG nozzle GG1EH
used for industrial refueling / attended refueling. With hybrid nose piece − low lever force. Release volume on valve closure: 1,7 cm³.
LNG Refuelling
N-LNG Nozzle, opening locking mechanism
TW couplings with male BSP connection, one piece adapter
VK 50 - 11/2" AG SS, VK 50 -2" AG SS, TWK 50 - 2" AG SS
Hose Connection with TW coupling, TSG 3" Sight Glass
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
Hose assemblies
with flanged coupling, Dry Disconnect Coupling, TW coupling
Aircraft Refuelling Skid
HD-C hose assembly, ZVA 32 nozzle, SG1Al sight glass, hose reel made by ELAFLEX Italy
ZVA Slimline 2, guard no. 1, black scuffguard, blue product sleeve, SL 16 hose assembly with blue Colour Sleeve
SG 1" 1x0 Al
Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
ZVG 2 EURO UL with new scuffguard EA 866 black
VX 50-2" NPT SS
Male hose coupling 2" NPT of stainless steel with Spannfix clamp
Petrol station in Dubai
ZVA Slimline 2 nozzle, SSB 16 Safety Break, Slimline hose assembly
Section view of a CSB 21 COAX Safety Break
ZVA 25
HIFLO-Automatic nozzle DN 25 (1"), flowrate up to 140 litres/min.
Scuffguard for ZVG 2 nozzles: type EA 866
with integrated fuel grade identification to European rules and large advertising/printing surface. Available in orange and black
DAC-V 65
Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading
