DDC-M 80 SS; SG 3", VC 75-3, Elaflon FEP 75
Epoxy resin loading with Dry Disconnect Coupling, sight glass and FEP universal hose
Cargo loading of ship - various media
FWS composite hoses
Dispenser at the airport
ZVA 25 Avgas for overwing refuelling

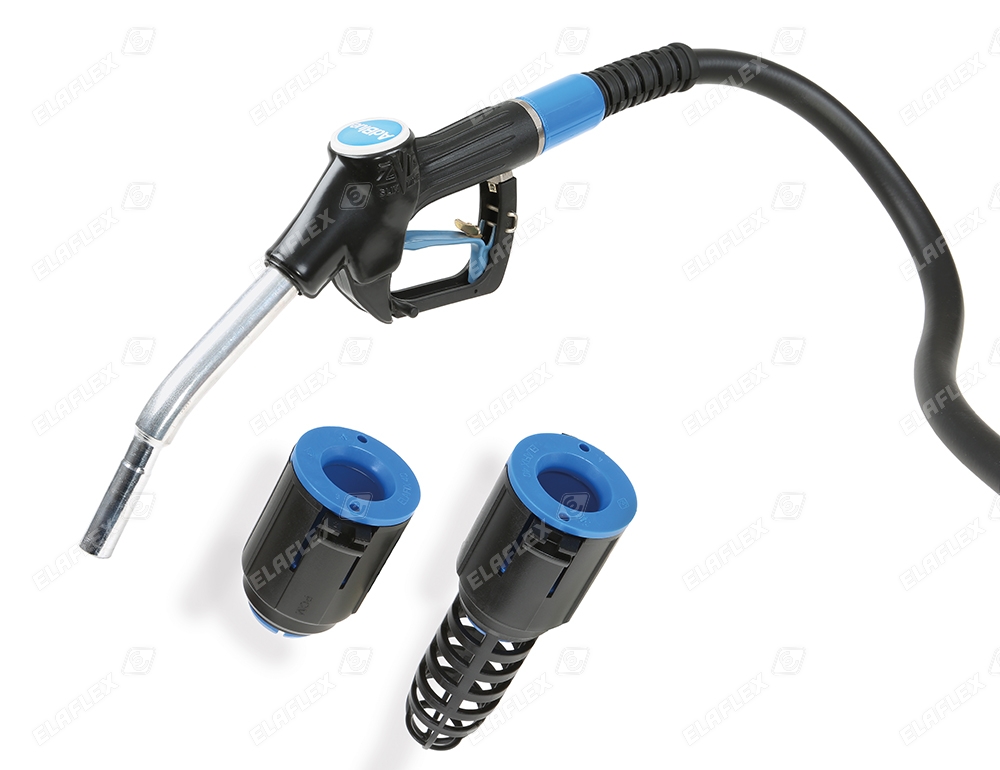

Urea solution for cars and light transporters: ZVA LV for AdBlue® nozzle
Oasis Fill Valves at CNG service station
Spannfix safety clamps SX 75 SS of stainless steel
Fluorflex FXD universal hose assemblies
with inner corrugation for maximal flexibility. Picture 1
Oasis DMI Dispenser Manifold for CNG
AdBlue® urea solution, road tanker:
DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel
SFX 50.16
hose flange; hose tail and swiveling flange of steel, Spannfix clams
MC 38-11/2" Ms

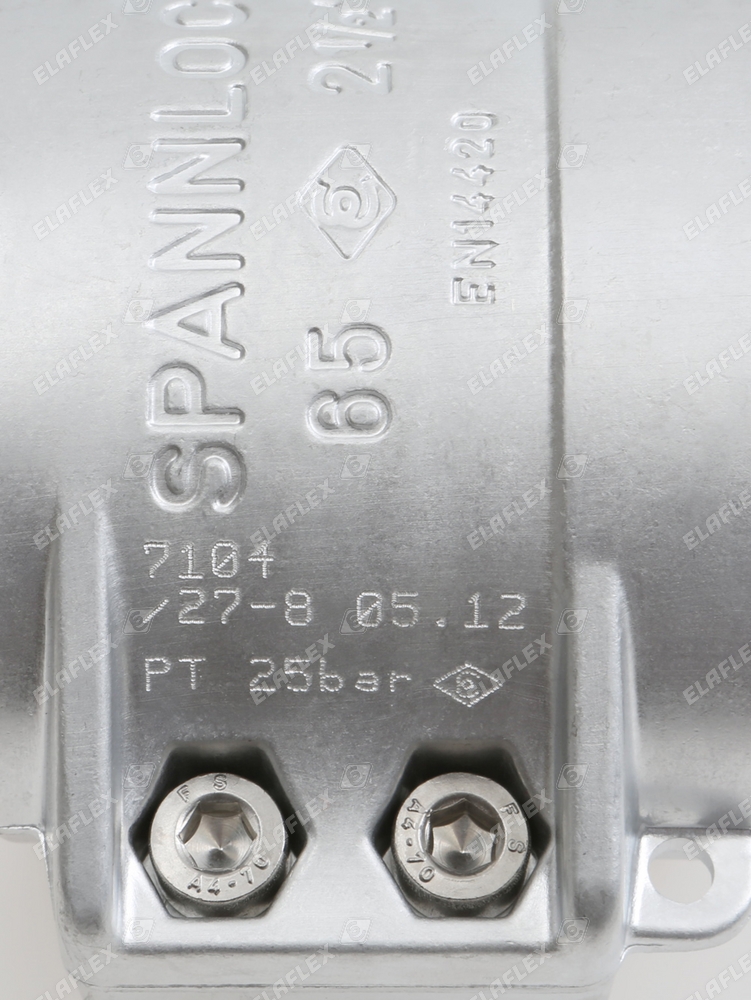

Female hose coupling for hoses, brass, with Spannloc clamps
Alternative fuels: B 20 (Diesel with up to 20% Biodiesel), E 85 (Gasoline with up to 85% Ethanol)
ZVA Slimline 2, ZVA Slimline 2 GR
ZVA Slimline 2 / ZVA Slimline 2 GR
Petrol station nozzles with (top) and without vapour recovery (below)
Stainless steel hose tails - new shape
Stainless steel hose tails - optimized shape for enhanced operational safety, suitable for temperatures up to 150° C. Details see Information 5.15.
ZVA Slimline 2 for aircraft refuelling
black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly
GSD 50 PU
Coupling seal for TW couplings, polyurethane
Stainless steel couplings with PFA coating, type "...SSE"
Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
ELAFLEX Hamburg
DCC Dry Cryogenic Coupling for LNG
Coupling process
TSG 3" Rg
tank truck sight glass type TSG 3", one end TW tank truck fl ange according to DIN 28459, other end male thread
Slimline 21 hose assembly with non reattacheable female coupling M 21-1" NR
ELAFLEX Hamburg, large new narrow aisle stock 2018 for hoses
ELAPAC FD 174 flange seal
ZVA 25, bus refuelling
SG 1" - SSB 16 Propeller
Sight Glass with SSB 16 Safety Break. Compact and lightweight combination of the functions hose swivel, Safety Break and Sight Glass (with propeller).
Ship loading various media - STW 150 and UTS 150 hose assemblies
Lightweight Gravity Discharge Road Tanker Hose LG 4"
with TW couplings
ERV-R 100.16
RED BAND Rubber Expansion Joint for water, drinking water (DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature range - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.
ELAFLEX Hamburg
Assembling ERV medium DN
