Road tanker hose assembly

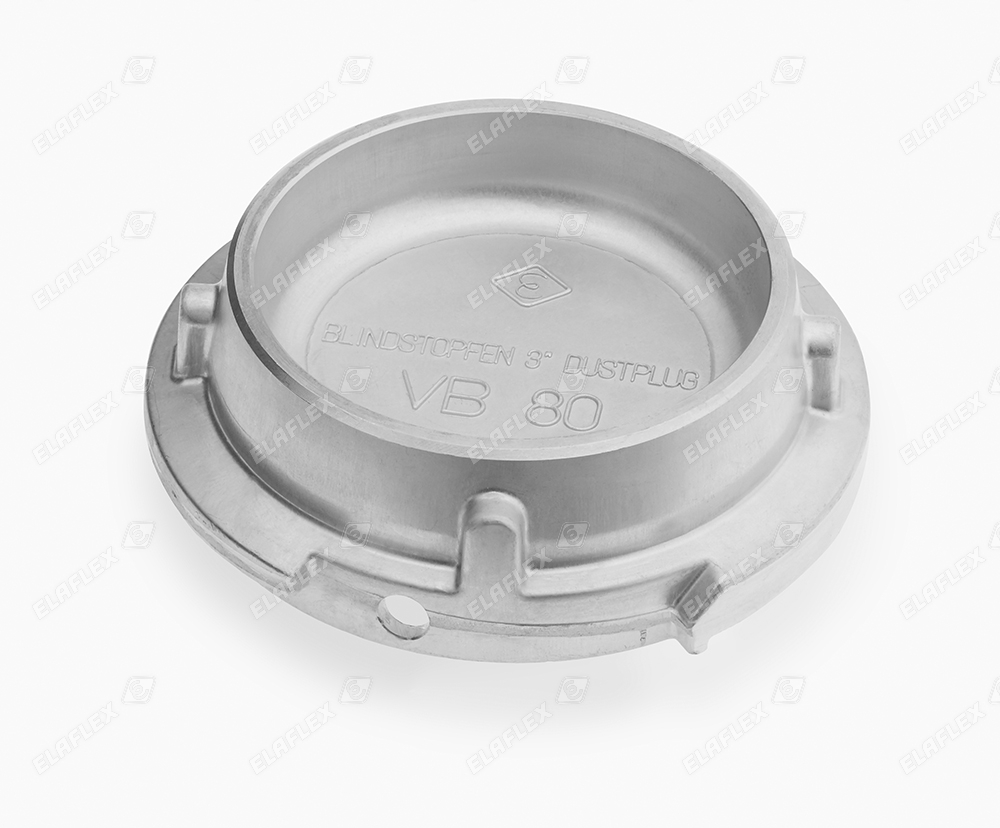

with VKC 75 SS (TW male coupling stainless steel, one part, with Spannloc clamps, K-Ring), dust cap VB 80 SS & chain
Rubber Expansion Joint ERV-W 80.16
WHITE BAND expansion joints for foodstuffs, also containing oil and fat. Liner corresponds to Recommendation XXI of BfR and FDA-21CFR 177.2600. Not approved for drinking water. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically non-conductive.
HD 50 C, Carter Underwing Nozzle, Aljac Lanyard Reel
ELAFLEX Hamburg
Aerial view (left to right): Technical dept., small aisle stock, stock with loading ramps
Cargo loading / unloading of ship, STW 150, Vapour Line
Italy
Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling
MK-A 80 SS, TW female coupler with Active Safeguard Lever, VB 80 SS
Pull slider to unlock
Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies
Lightweight Gravity Discharge Road Tanker Hose LG 3"
with VX 75-3" Al LG
Road tanker reel with HD 50 hose assembly, ZV 500 nozzle
Hose assembly with MKX 75 SS and VB 80 SS
TW female coupler with Spannfix clamp, plug
Oasis Engineering Ltd, New Zealand (CNG refuelling products)

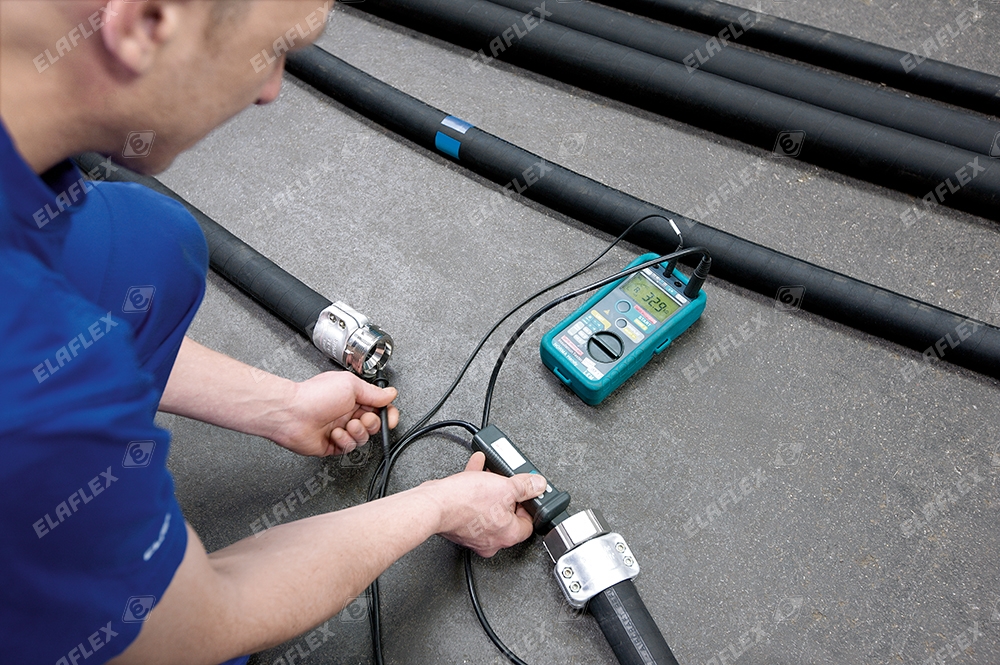

Testing
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, red.
ELAFLEX Hamburg
Hose stock, reeling up a FEP hose
ZVA Slimline 2, guard no. 1, black scuffguard, blue product sleeve, SL 16 hose assembly with blue Colour Sleeve
Bunker boat: FHD flat laying hoses, HD hoses
Quality in the detail: valve assembly of a ZVA Slimline 2 petrol station nozzle
Optional service for hose assemblies:
BandIt hose marking with test data
Elaflon PTFE 50
Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.
Unloading road tanker
TW hose assembly, DDC Dry Disconnect Coupling
MK 80 SS, TW couplers stainless steel
ELAFLEX Hamburg
Assembling ERV large DN
UTS hose assembly
on board of a foodstuff road tanker
KWZ x MK 80-32°
Rail car adapter with TW coupler, bent lever
Camlock cam locking couplings:
Attachment AVB dust plug with chain to Spannloc clamps (service free of charge)
ZVA Slimline 2, black, guard 3 - detail view with new hold-open latch
Hose assemblies
Polypal Clean with RMC, LPG with ACMX, Polypal Plus with SFC-SS, Tecnopal with MK-SS
Rubber Expansion Joint ERP 80.16
RED SPOT expansion joints for sanitary installations, highly flexible, for cold and warm water, pool water, sea water, drinking water. Temperature range (depending on medium) - 40° C up to + 90° C, temporarily up to + 120° C. Electrically dissipative.
Construction site / on site refuelling:
ZVA 25 (automatic nozzle), road tanker
Transporter and school bus refuelling with LPG (L.P. Gas, Autogas, Propane)
GasGuard ACME nozzle
