HD 100 C Neon, underwing refuelling
Aircraft Dispenser
TWD coupling seal
DDC-M 25-1" SS
MannTek Dry Disconnect Coupling, DN 25, stainless steel
L.P.Gas unloading of road tanker
LPG 50 hose assembly
Tar (bitumen) spraying hose HB-ST in action
SPANNLOC bolted safety clamps of aus stainless steel
SC 75 SS
HD 63 C NEON, TW 75 E NEON
'NEON' type with reflecting bands or NEON marking in spiral form
Transport protection for threaded fittings
Oasis company building
ELAFLEX Hamburg
ERV pressure testing
Elaflex Cam and Groove Couplings ('Camlock'): AMKX 50 EASY
EASYLOC stainless steel coupler to EN 14420 - 7, with lever arrest. Picture shows the version as one-piece coupler with integrated hose tail and Spannfix stainless steel clamp
AMB 50 SS
'Camlock' stainless steel dust cap to EN 14420 - 7 for male adapters AVK with captive seal
Construction site / on site refuelling:
ZVA 500 manual bulk nozzle

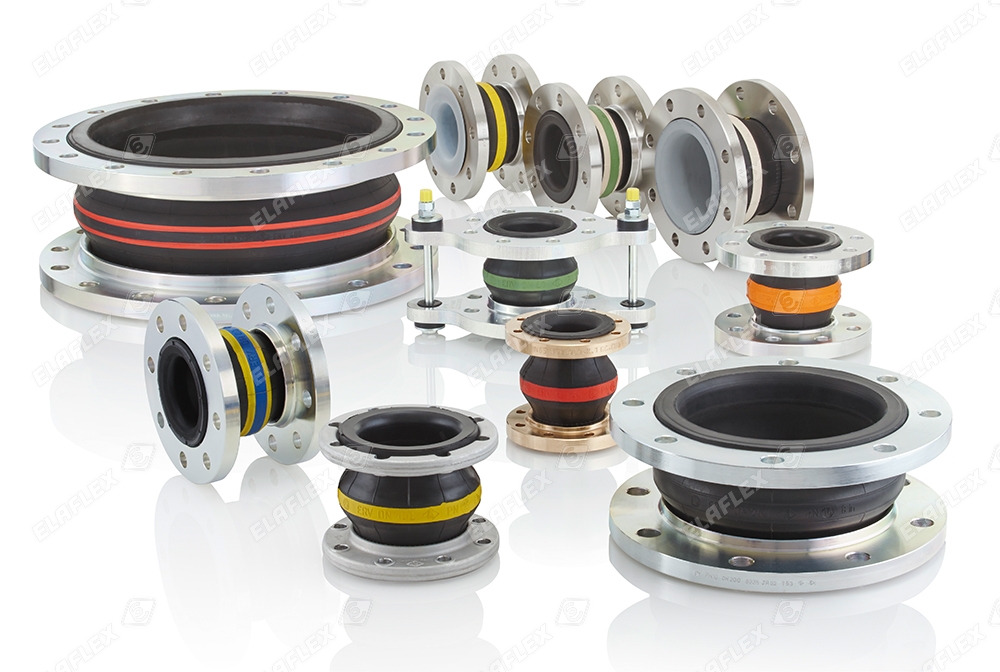

Elaflex hose assemblies and Rubber Expansion Joints for petroleum based products
TSVC 100 hose connectors
Fittings to conect two hose assemblies - available in many sizes, with Spannloc or Spannfix clamps
ZVA Slimline 2
Automatic nozzle DN 19, for flowrate max. 80 l / min.
ZVA Slimline 2, black - top view
Unloading petroleum products at the service station (road tanker to UST)
LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.
AKD-Hy
Coupling seal type AKD for cam locking couplings EN 14420-7. Here: of CSM
ERV TA:
ERV with white PTFE lining. Used when the chemical resistance of the chosen ERV type is insufficient. Resistant to all commonly used liquids. Electrically isolating, therefore not suitable for flammable liquids in Ex-Zones. Admissible working temperature of expansion joint has to be observed. For maximum pressure of 6 bar – not suitable for vacuum.
ZVA Slimline TD
Automatic nozzle with special seals, for solvents / chemicals
MannTek DGC DryGasCouplings for L.P. Gas
DGC-M 50 F, DGC-M 80-3", DGC-M 50-2", LPG hose
VB 80 SSE
TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
Hose assemblies
Polypal Clean with RMC, LPG with ACMX, Polypal Plus with SFC-SS, Tecnopal with MK-SS
ZVF 50 JET for aircraft refuelling
Aircraft refuelling hose with reflecting stripes, Hose Beads 'BD' which notably improve the handling as they reduce friction against the tarmac, next generation overwing nozzle ZVF 50
ELAFLEX Hamburg
ERV conductivity test
ZVA LV for AdBlue®
Urea solution filling of cars and light transporters
SD Pyropal hose assemblies for saturated steam in the chemical industry
MS 19-3/4" hose fittings for saturated steam
