Boat refuelling, ZVA Slimline 2 GR
Elaflon PTFE 25
ZVF 50 AVGAS for aircraft refuelling
with ER 583
ELAFLEX Hamburg
Cargo loading of a tanker with petroleum based products; FHD hose assembly
Picture courtesy of Macoil International, Gibraltar
SBS 250 - marine cargo hoses with built-in nipples
EN 1765, category S 15
ZVA Slimline 2
Automatic nozzle DN 19, for flowrate max. 80 l / min. Product Sleeve EK 043 blue, Slimline dispensing hose assembly
Yellow Band hoses from Elaflex
Setting the standard for refuelling hoses
FHD 50 special type HIFR
(helicopter in flight refuelling)
Marine bunkering and cargo hoses
ship to shore cargo transfer
SG 1" 1x0 Al
Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
ZVG 2 K (Korea)
uncoupling from J 15 filler connection
LeverAssist hold-open aid for ZVA Slimline 2 nozzles
Detail
Oasis BV708, 1" ball valves, isolation valves, CNG trailer loading
Hose assembly with STKC 75
Storz coupling with Spannloc clamps
Rubber Expansion Joint ERV-R 80.16
RED BAND expansion joints for water, drinking water (approvalDVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature (depending on medium) - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Sand casting ZVA
ZVA Slimline 2 / ZVA Slimline 2 GR
Petrol station nozzles with (top) and without vapour recovery (below)
Oasis HC308 Ultra Fast Quick Fill Coupler, SAE male, for CNG
Slimline 19 black
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
ERV Rubber Expansion Joints
Picture 1
Camlock Cam Locking hose tails AMK-St 50 Ms and AVK-St 50 Ms (brass)
Sight Glasses for petrol station nozzles
SG 1" Al, SG-COAX, special types with Propeller
VKC 75.80 SS
TW male hose coupling, stainless steel, two part, with Spannloc clamps

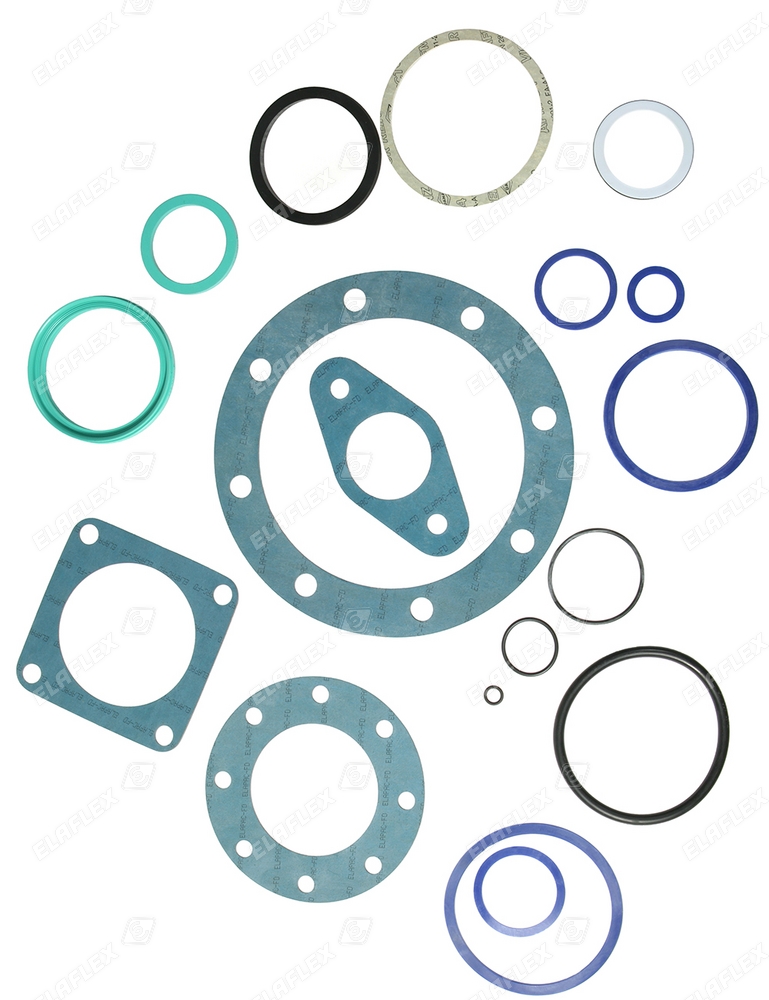

ELAFLEX seals
Hose assembly for L.P. Gas
LPG 50, DGC-M 50
Hose assemblies for the chemical industry
ERV-GR TA, UTL with DDC, FXD with male thread, Elaflon Plus FEP with foodstuff fitting, Elaflon PTFE with female thrad
Nozzles and hose assemblies for the forecourt
ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies
VKC 75 SS
TW male hose coupling, stainless steel, one part, with Spannfix clamps, with protecting "K"-Ring
SBS 250 - marine cargo hoses with built-in nipples
heavy standard bunkering hose to EN 1765, category S 15
