ELAFLEX Hamburg
Stock special flanges, pick by voice, scanning
ELAFLEX Hamburg
Manufacturing bronze corrugated pipes
Butapal LPG 10
L.P.Gas hose DN 10
EK 145 Product Badges for ZVA nozzles

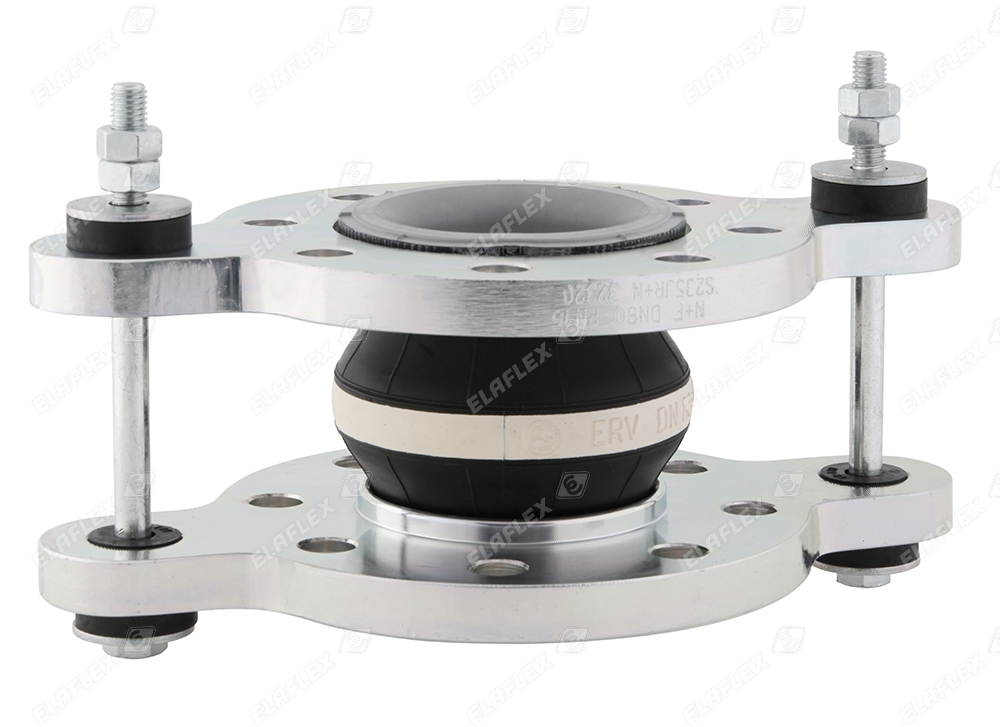

ERV-BR 100.16
BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.
Section view of a DS 2 swivel
VB 50 P, VB 80 P
TW dust plugs of Polyamide

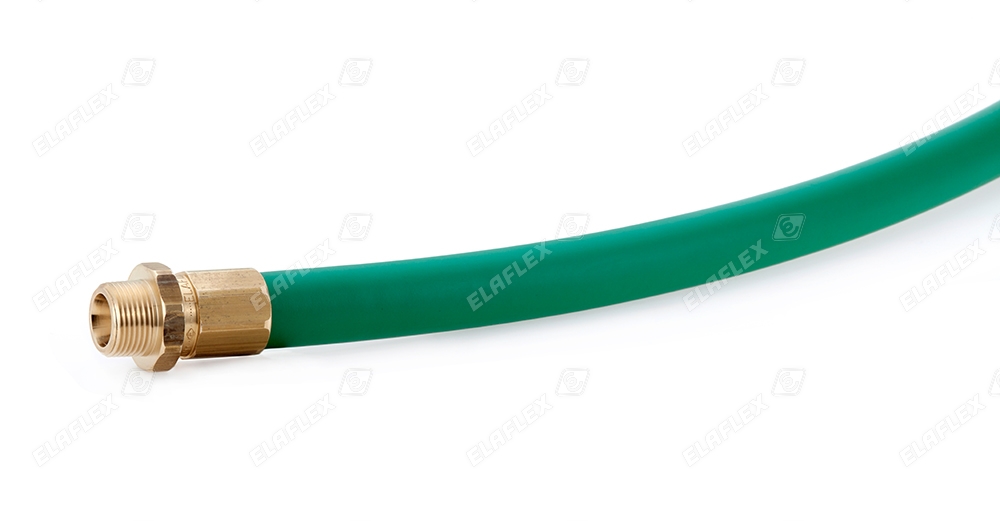

Slimline 16 green
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
Adapter: VK 100 x MK 80-32°
The lever is bent to enable lever arrest (safe position when coupled)
Ship bunkering with LNG
DCC Dry Cryogenic Coupling CBC Cryogenic Breakaway Coupling
KW bronze corrugated pipe with cathodic protection
Cathodic protection flexible pipe connector (bronze corrugated pipe) for electrically insulating, cathodically protected installations. Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps - and directly underneath the dispensers
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Sight Glass SG 2" SS/Vi with MK 50 SS/Vi and VK 50 SS/Vi
Cabinet of road tanker:
MK 80-32 TW coupler with bent lever, VB 80 P dust plug
MannTek DCC-V & DCC-M Dry Cryogenic Couplings
Storz Safety Couplings Type SHK
upon uncoupling, the safety dust plug first falls into holding claws, relasing an eventual pressure within the system. Only then the dust cap can be fully taken off. - increased protection for the operating personnel. Easy to use, no additional pressure release necessary, slim design, does not build up, no freezing up in the dome section.
Quick Tester GR 92
for the simple Yes / No functioning test of vapour recovery
MannTek DDC-V & DDC-M Dry Disconnect Couplings
SSB 16 LV
Safety Swivel Break, for ZVA LV for AdBlue®. Calibration switch 10 l/min – 5 l/min
Fuel delivery at the petrol station
LTW 75 fuel delivery hose, GPS 50 vapour balance hose
RN 2 x 21/2" SS
Reducing nipple
ZVA LV for AdBlue® with EA 075 LV
Urea solution (DEF, ARLA 32) for Light Vehicles
TW connecting hoses
airport depot, gantry
ELAFLEX Hamburg
New narrow aisle stock (2018)
HD 38 C, VX 38 - 11/2 Sn
Hose assembly for aircraft refuelling, fitting in contact with medium tin plated
CNG Safety Break
SB-CNG FLVL-S

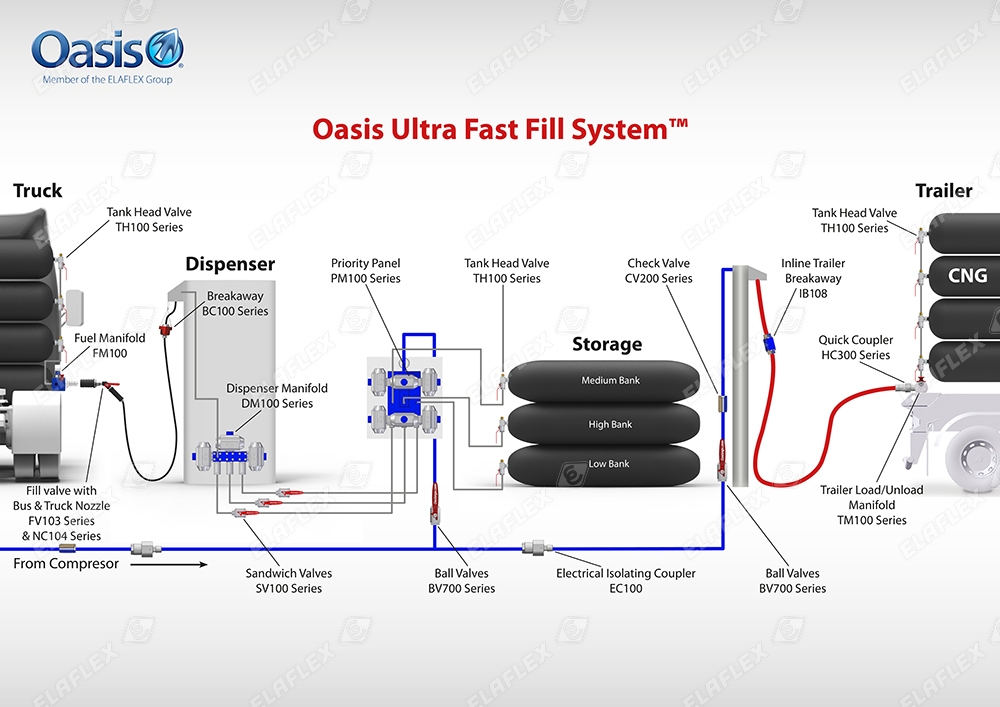

Oasis CNG refuelling equipment:
Ultra Fast Fill System (Diagram, German)
ELAFLEX Hamburg
ERV flange assembly medium sizes
DAC-V 65
Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading
Scuffguard for ZVG 2 nozzles: type EA 866
with integrated fuel grade identification to European rules and large advertising/printing surface. Available in orange and black
Boat refuelling with L.P. Gas
GasGuard nozzle, LPG 16 hose
