SMS 19-3/4"
Steam hose couplings of steel to EN 14423. With bolted clamps of hot stamped brass. For saturated steam hoses up to 220° C, compressed air, oxygen, oils up to 25 bar W.P. Hose tail and union nut of steel Zn / Cr.
DAC-V 65
Aircraft refueller, Dry Aircraft Coupling to ISO 45 for bottom loading
Road tanker Sweden
large reel with HD hose assembly, DDC-V (Dry Disconnect Coupling, tank unit) and DDC-K (caps)
Oasis BV708, 1" ball valves, isolation valves, CNG spheres (tanks)
Hose assemblies
for petroleum based products, chemicals, foodstuff and pharmaceuticals, LPG
HD-C, underwing nozzle
Aircraft refueller, large reel with aircraft refuelling hose and underwing nozzle
HD-C LT, Low Temperature
Antarctica: Low Temperature aircraft refuelling hoses in action; fuel transfer from drums via mobile pump
Hose Connection with TW coupling, TSG 3" Sight Glass
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
L.P. Gas road tanker: long hose reel, LPG 32 hose assembly
Hose Reels group picture
Movable, pneumatic rewind system, active Vapour Recovery (VR) for gasoline fuels
Nozzle boot NB-ZVF 50
for ZVF 50 Oberflügel-Zapfventile
ERV-R 150.16 ZS 2
Red Band Rubber Expansion Joint with "ZS" limiter (tie rods with outer limitation in rubber bushings)
KR 50
bend with VK 50 x MK 50, 60°
MB 80 Al
Dust cap for VK 80, aluminium
Safety Swivel Break SSB 16 SS of stainless steel f. ZVA HV for AdBlue®
old design
ZVF 25 for aircraft refuelling
dust cap and ground cable assembly
Hose assembly for petroleum based products
LTW 75, VC 75-3", DDC-M 80-3"
MannTek DDC-M150, DDC-V150, DDC-V150 F
HD-C Neon, large reel, VK 100 Ms, MB 100 Al

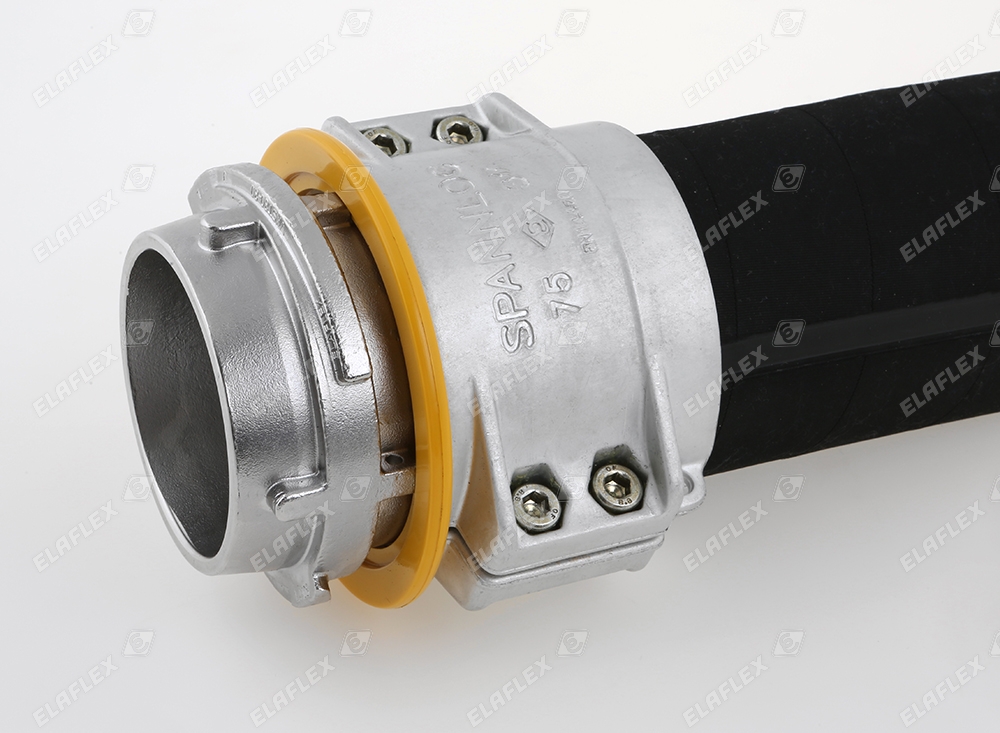

VKC 75 SS
TW male hose coupling, stainless steel, one part, with Spannfix clamps, with protecting "K"-Ring

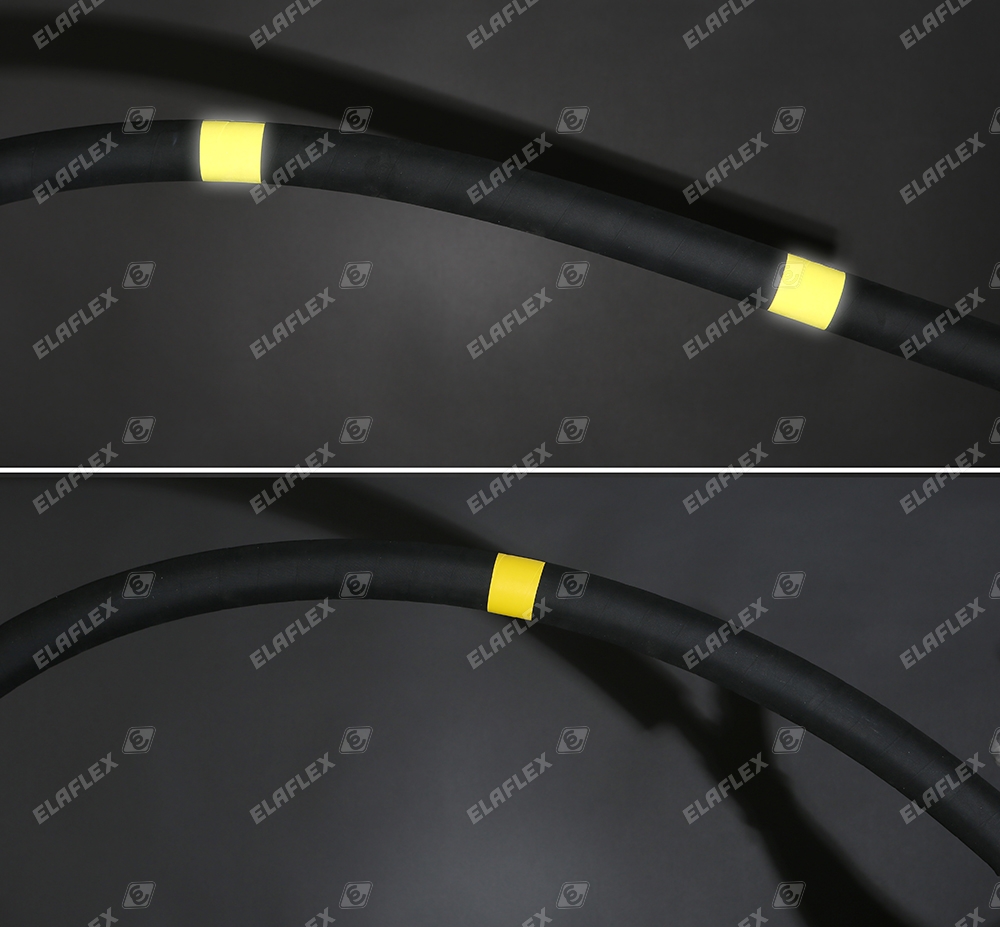

Vergleich visibility aircraft refuelling hoses - below: "Yellow Band" standard, top: "NEON" new version with reflecting bands
Universal hose UTL 50
ZVA Slimline 2, dispenser
Dantec Production hose
Composite hoses: hose marking on ferrule
KW bronze corrugated pipe with cathodic protection
Cathodic protection flexible pipe connector (bronze corrugated pipe) for electrically insulating, cathodically protected installations. Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps - and directly underneath the dispensers
MK 50 SSE
TW female coupler stainless steel, with PFA coating (red)
SG 1" 1x0 Al
Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
LNG ship bunkering
DCC 100 Dry Cryogenic Coupling, CBC 100 PERC Cryogenic Breakaway Coupling
ERV-G 100 TW
Aircraft refueller
Bellows ERV-GR (Green Band) without flanges, with VSD vakuum support spiral
VSD: to increase vacuum resistance of a chosen ERV type. Open ring of stainless steel 1.4571
