SFC 50.16

hose flange; hose tail and swiveling flange of steel, Spannloc clams

MC 100 SS female threaded hose coupling with Spannloc clamps

with universal hose UTL 100

ZVG 2 EURO UL nozzle for L.P. Gas / Autogas

with EA 866 scuffguard black and LPG 16 S hose assembly black

Sample Collection Unit

DDC-M 25 Dry Disconnect Couplings and HD hose assembly for sample collection of aircraft fuel

VX 50-2" SS

Male hose coupling 2" BSP of stainless steel with Spannfix clamp

ELAPHARM Type EPH

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

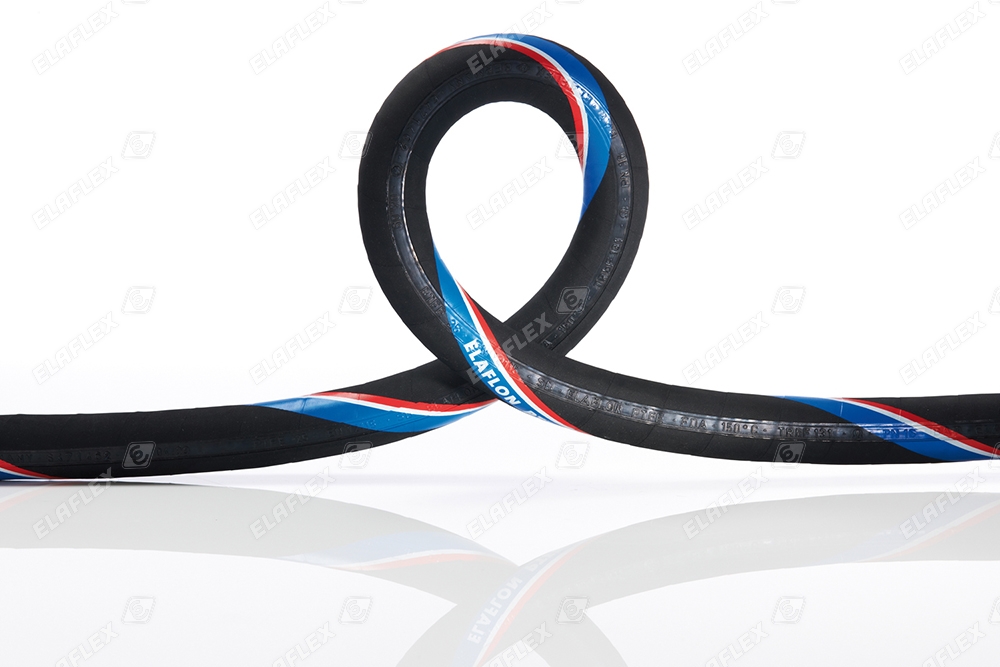

Elaflon PTFE

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Cargo loading of ship - various media

FWS composite hoses

ContiTech Production ERV

Calender, woven fabric

DAC-V 65

Aircraft refueller, Dry Aircraft Coupling to ISO 45 for bottom loading

ELAFLEX refuelling equipment:

Quality is in the detail.

Elaflon Plus FEP 25

Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.

ZVF 50 JET

Production MannTek, Sweden

Oasis EC100 electrically isolating couplers for CNG

Oasis Engineering Ltd, New Zealand (CNG refuelling products)

Development

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

Chains K 160, K 160 SS, K 180 L, K 200, K 200 SS, K 260 L, K 300, K 300 SS, K 360, K 360 SS

Connection between coupling and dust cap / plug

Coax hose assembly, section view

DDC-V 50 SS F

MannTek Dry Disconnect Coupling, DN 50, stainless steel, with flange connection

Elaflex Pacific (Australia)

Construction

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

VB 80 SSE

TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 EURO (UL listed)

ERV-GS

"Yellow Steel" Rubber Expansion Joints / ship engine room; Netherlands

Unloading petroleum products at the service station (road tanker to UST)

LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.

Oasis manifold, ball valves - Biogas

RS 2 x 78 SS

Reducer Female/Male

LNG Refuelling

LNG Nozzle 'N-LNG' coupled to fuel, LNG 25 fill hose assembly, bonding cable

SPANNFIX pinned Sicherheits Klemmbacken aus stainless steel

SX 75 SS
