Elaflex hose assemblies
Hose fittings: threaded, flanged, quick couplings, Dry Disconnect Couplings
ELAFLEX Hamburg
Assembling Spannloc hose clamps
Lightweight Gravity Discharge Road Tanker Hose LG 4"
with TW coupling (VK 100)
Camlock Cam Locking hose tail AMK-St 50 Ms and male adapter AVK 50-2" Ms (brass)
Underwing refuelling, HD-C, aircraft dispenser
V 16-3/4"
Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, yellow.
BD 63 Hose Beads
to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.
Forklift refuelling with LPG (L.P. Gas, Autogas)
GasGuard nozzle, LPG 16 hose; dispenser
Colour production: mixer
UTS hose assemblies
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Assembling ZVA
Lube oil filling, ZV 19 manual nozzle
SPANNFIX pinned safety clamps of aluminium
SX 50 NR Al
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components – detail view
ERV-G 100.16
YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.
Construction site / on site refuelling:
ZVA 500 manual bulk nozzle, HD hose assembly, road tanker
Aircraft refuelling: MannTek sampling unit in hydrant system
Alternative fuels: DME Dimethyl Ester
DGC Dry Gas Coupling, EFL 16 Fluorline hose assembly
Ship bunkering with LNG
CBC Cryogenic Breakaway Coupling from MannTek and hose assembly for cryogenic media
ERV-OR
"Orange Band" Rubber Expansion Joints, road tanker
Stainless steel Hose Reel with pneumatic rewind system, HD 50
Universal hose UTL 38
ERV-R
"Red Band" Rubber Expansion Joints / ship engine room
LNG Refuelling
LNG Safety Break SB-LNG VL und SB-LNG FL
RS 4 x 51/2 SS
Reducer Female/Male
MK-A 80 SS
MK 80 SS with active safeguard lever
Oasis NGV / CNG Refuelling Equipment
ELAFLEX quality: section view of a ERV bellows
ERV-OR "Orange Band"

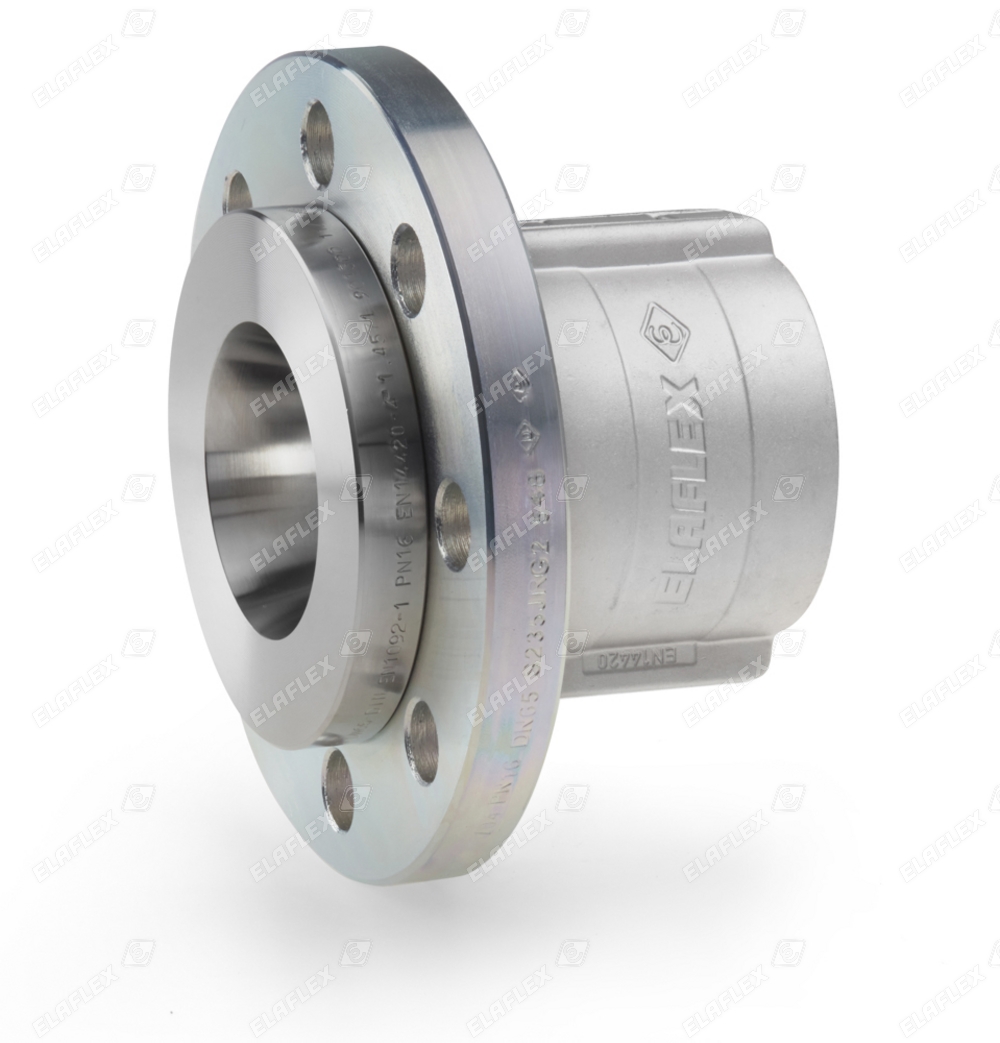

Fixed Flange and hose tail of stailess steel
SFC 63.16 SS
SFC 38 SSE
Swiveling flange hose coupling with Spannfix clamps. Material: stainless steel with universally resistant PFA coating (red)
Construction site / on site refuelling:
ZVA 25 (automatic nozzle), road tanker
