DDC-M 100, TW hose assembly
Rail tanker bottom loading with Dry Disconnect Coupling
Oasis BV708, 1" ball valves, isolation valves, CNG spheres (tanks)
ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings
MC 38-11/2" SS
Female hose coupling for hoses, stainless steel, with Spannloc clamps
Refuelling with ZVA Slimline 2
Portugal
V 19-1" SS
Male ferrule hose coupling EN 14424 stainless steel, reusable. Slimline 19 SF (sulphur free) hose, black.
Hose Reel Spring Rewind, ZVA Slimline 2 blue
HD 50 C, HD 10 C
Yellow band aircraft refuelling hose and sensing hose
Truck refuelling with LPG (L.P. Gas, Autogas)
ZVG 2 ACME nozzle, LPG 16 hose
Unloading chemical road tanker
Elaflon PTFE hose assembly, TW couplings
L.P.Gas unloading of road tanker
LPG 50 hose assembly
Oasis ball valves for CNG in winter
Unloading LNG road tanker
DCC Dry Cryogenic Coupling
ELAPAC FD flat sealing material
2 or 3 mm thickness, available as coil, standard size seal or in custom shape. An elastic flange seal for tank truck and tank plant construction etc., where rough sealing surfaces require a high adaptability, where flange seals should still have good flexibility to avoid pipe fractures or simple sealing materials because little or no force can be used to tighten the joint.
Polypal Plus 50 universal hose
with seamless, black, conductive UPE lining. For almost all liquid and pasty chemical and petroleum based products and solvents. Meets EN 12115.
HD 32 C
Yellow Band' aircraft refuelling hose, suitable for all aviation gasolines and jet fuels (JET A 1), deicing fluids and motor oils. Temperature range - 30° up to + 90° Celsius. Electrical resistance between 1,000 and 1 million Ohm.
Rail tanker unloading of petroleum based products
FWS PP St/St composite hose, MannTek Dry Disconnect Coupling, KWZ adapter
V 16-3/4"
Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, blue.
TWD coupling seal

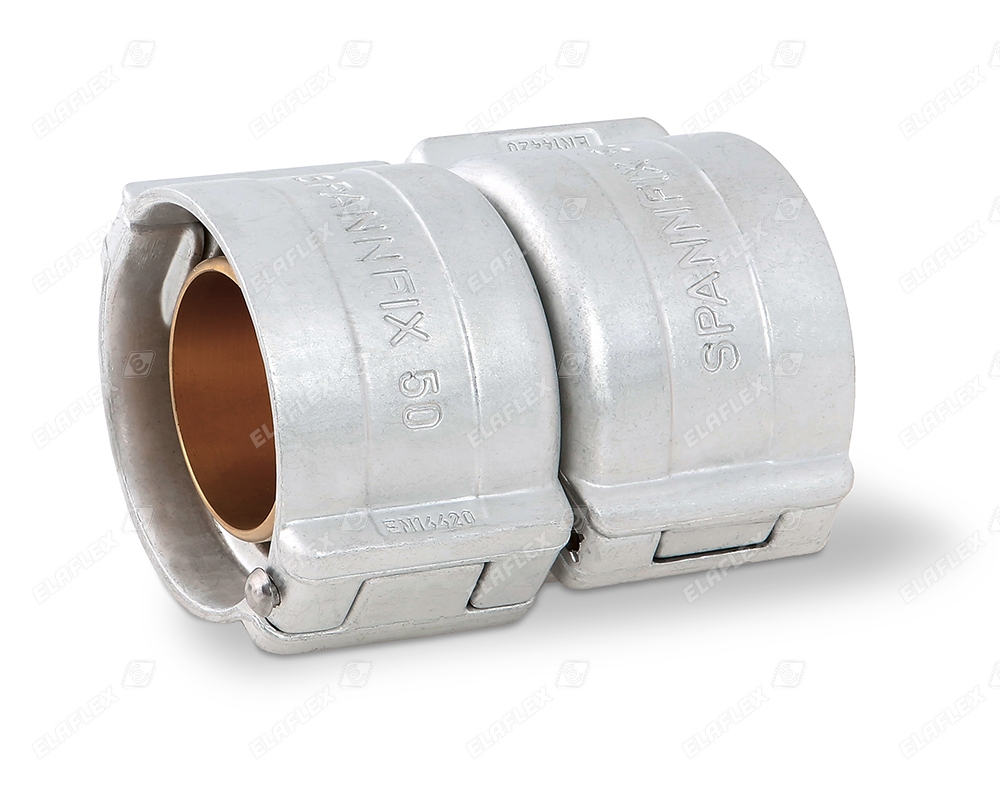

TSVX 50
Hose connectors with double shank of hot stamped brass, with Spannfix safety clamps of hot stamped aluminium.
FWS composite hoses / hose assemblies
Type FWS PTFE with male threaded fitting, Type FWS PP with Camlock coupling, Type FWS VR with "TW" female coupler MK
DCC Dry Cryogenic Coupling for LNG
Coupling process
PHD-F aircraft refuelling hose
PHD 63 F
PSB Pump Safety Break for High Hose Dispensers
Picture shows separation of the Slimline hose assembly after a drive-off accident
HB 50 ST tar spraying hose
Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).
ERV-R
"Red Band" Rubber Expansion Joints/ Osmose
Ship loading Naphta - STW 150 hose assemblies
DAC-V 65, DAC-M 65
Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - with and without sight glass
ZVG 2 ACME nozzle for L.P. Gas / Autogas, LPG 16 hose assembly, ARK 19 Safety Break
ZVF 50 AVGAS for aircraft refuelling
with ER 583
